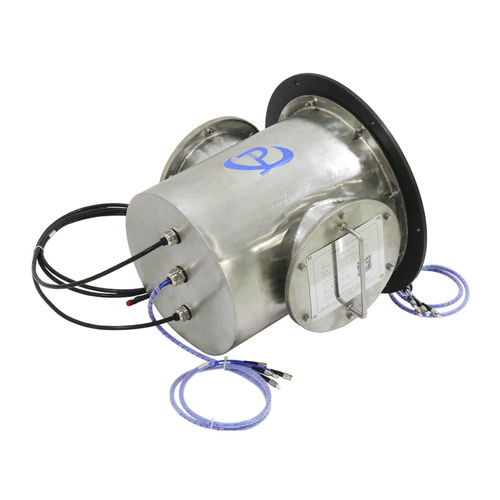

electro-optical slip ring / for marine applications / stainless steel / IP65
LPA000-0250-FO04 JINPAT Electronics Co., Ltd.

{{requestButtons}}

Characteristics

  • Type:

    electro-optical

  • Applications:

    for marine applications

  • Material:

    stainless steel

  • Other characteristics:

    IP65

  • Rotational speed:

    Min.: 0 rpm (0 rad.min-1)

    Max.: 100 rpm (628 rad.min-1)

  • Current:

    Min.: 1 A

    Max.: 50 A

  • Voltage:

    Min.: 0 V

    Max.: 4,000 V

  • Number of contacts:

    Min.: 1 unit

    Max.: 2 unit

Description

Specification
Electrical Part
Circuits: 2 ckt*50A
Voltage: 4000VAC
Working Speed: 0~100 rpm
Contact: Precious Metal
Housing: Stainless steel
Working Temperature: -20~+75℃

Optical Part
4 channels* optical signal(single mode)
Working Speed: 0~300 rpm
Protection Level: IP65
Insertion Loss: <5dB (Typical value 2-3dB)
Wavelength: 1270/1610nm (single mode)
Insertion Loss Variation: +/-0.5 to 1dB
Return Loss: >45dB
Crosstalk:>50dB (Typical Value 63dB)
Operating Speed:300 rpm

Protection Grade: IP65
