Miniature stepper motor driver
18 - 28 VDC | SMD73
JVL

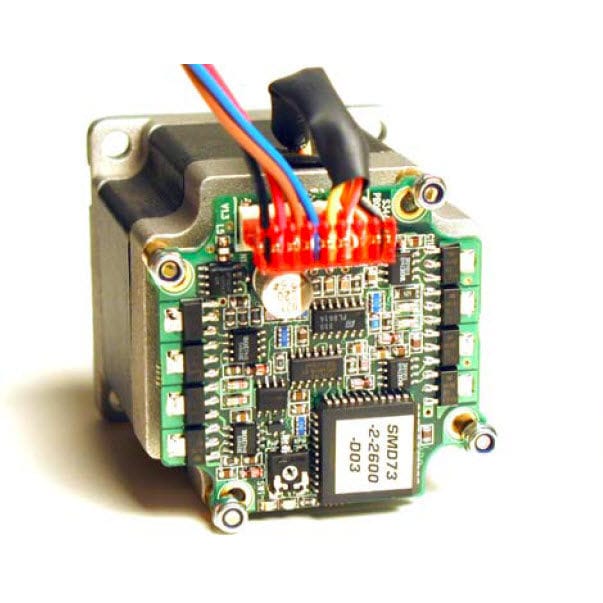

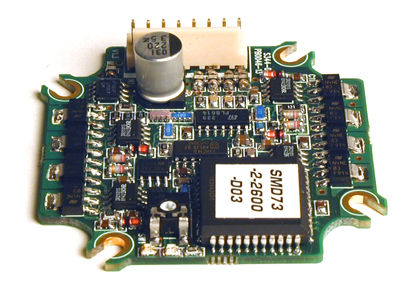

Step Motor Driver SMD73 is a miniature driver that measures only 52.4x52.4 mm and is ideal for direct mounting onto a step motor. It fits onto most types of high-torque motors, but of course can also be mounted on a surface.
- OEM low-price driver for Step Motors Dimensions only 52.4x52.4x14mm
- Power Supply from 18-28VDC
- LED indicators for error and power on
- Operates in half-step mode,
- 400steps/rev. 200, 800 or 1600 steps/rev. to order
- 3.0 A per phase, other values to order
- NPN/PNP inputs available to order
- Can be mounted on a surface or directly on NEMA23/34 High Torque motors
- Motor control via step-pulse and direction signals
- Can handle up to 50ksteps/sec.
- Also available as DC driver, up to 4A RMS
- Protected against thermal overload, current overload, short-circuit
