Differential pressure sensor CPE 310-S, CPE 311-S membraneanalogflush diaphragm
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Pressure type
- differential
- Technology
- membrane
- Output
- analog
- Mounting
- flush diaphragm
- Material
- stainless steel
- Protection level
- IP65
- Other characteristics
- with digital display
- Pressure range
Min.: -1,000 Pa
(-0.15 psi)Max.: 1,000 Pa
(0.15 psi)- Process temperature
Min.: -10 °C
(14 °F)Max.: 50 °C
(122 °F)
Description

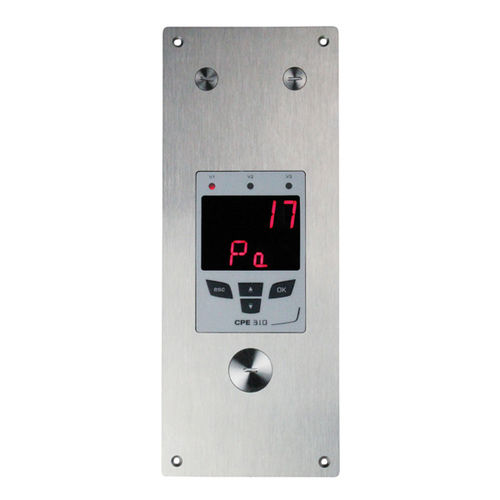

Kimo’s CPE 310-S is a flushmount multifunction pressure sensor. It can display up to three parameters alternatively.
Measuring ranges: CPE 310-S: from -100 to +100 Pa and CPE 311-S: from -1,000 to +1,000 Pa
Measures temperature, humidity, air velocity, CO, CO2
One input for probe
Three visual and audible alarms
Three analogue outputs 0-5/10 V or 0/4-20 mA
Adjustment certificate
