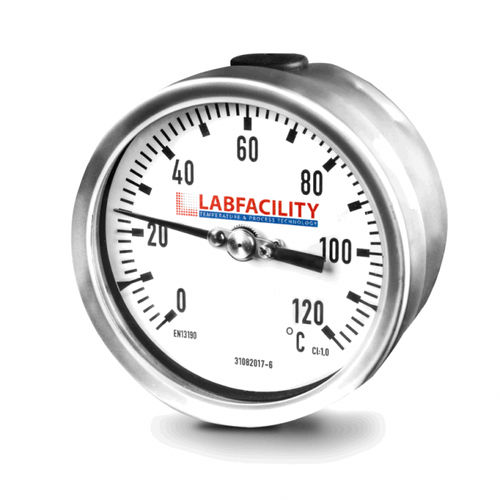

Bimetallic thermometer

dialstainless steel

Labfacility now offer Bi-Metal Stainless Steel Thermometers with bottom or back entry and 'any-angle' versions. •Micro adjustable pointer •Class 1 with 316 S/S Stem •100mm Face size with various lengths and diameters available •1-year guarantee offered for working parts / default •Adjustable installation fittings - comprehensive range of compression fittings available •Optional 1/2" BSP Thermopocket available •Temperature Ranges from -20°C to 200°C Standard stainless-steel gauges and pockets are suitable for air, oil, water and other non-erosive fluids. Environmental conditions should be taken into account when considering suitable materials for dial case, etc. Specifications Accuracy Class 1 (1% F.S.D.) Dial Size 100mm ConstructionFlush fitting bayonet locking case and bezel Measuring ElementBi-Metallic coil Ranges °C -20 to +40°C, 0 to +100°C, 0 to +120°C, 0 to +200°C Over Limit Range130% full scale Stem / Bulb316 Stainless steel Case / Bezel ringStainless steel AISI 316L Window Glass Dial Aluminium, black figures on white PointerAluminium, black Movement Direct drive on back entry Ambient Temperature-10...+50°C Temperature Effectmax...0,3% / 10°C Protection EN 60 529IP65
