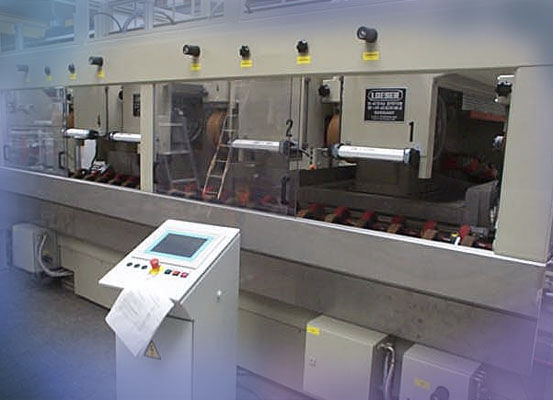

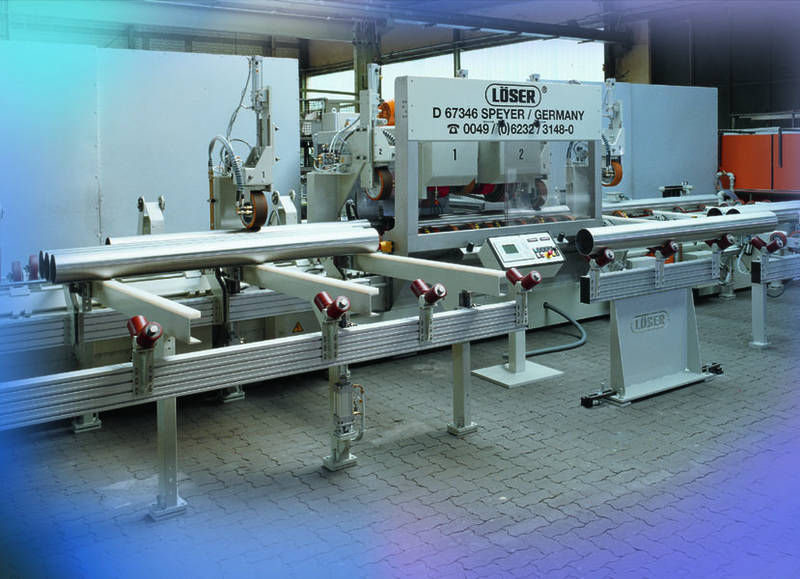

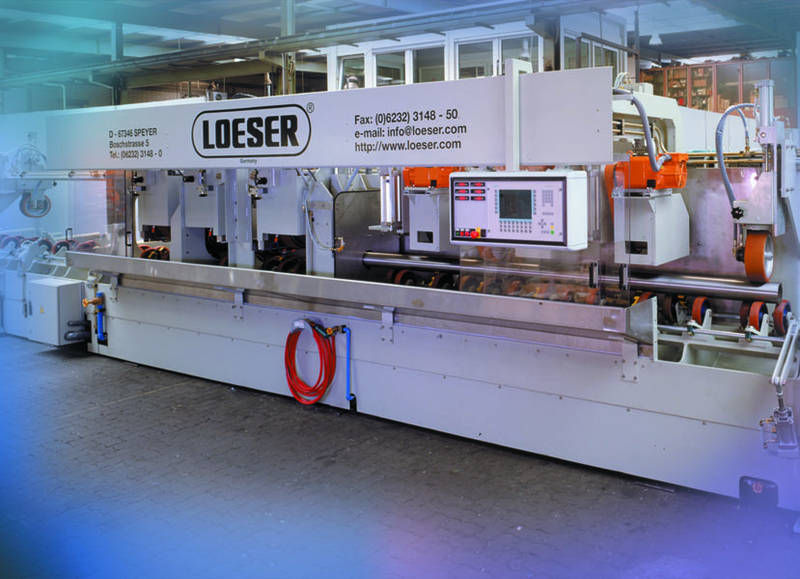

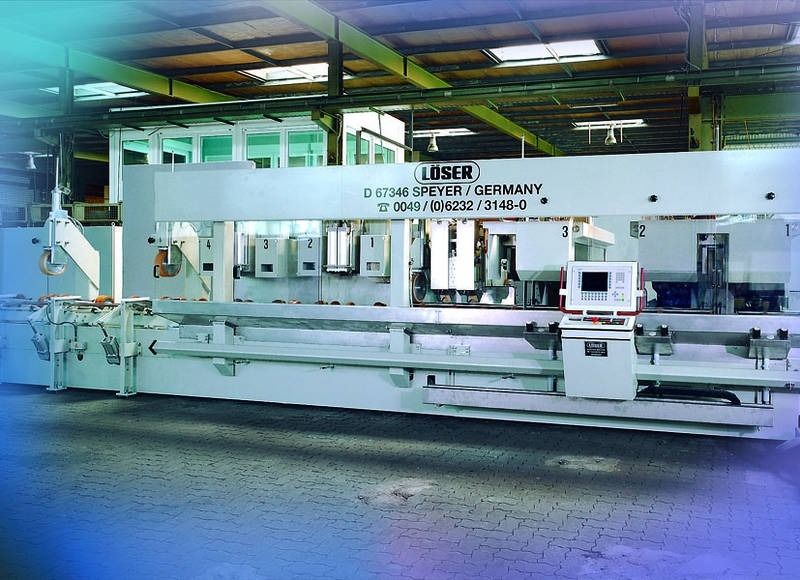

Heavy duty centerless grinding machine
max. ø 500 mm | RPS 377 LOESER GmbH

Model RPS 377
Characteristics of the centerless model RPS 377
Diameter Range up to 500 mm
Belt grinding motor 11 kW bis 22 kW / 15 HP to 30 HP
Belt dimension 150 mm or 200 mm wide x 3500 mm length
Heavy duty roller guides for solid bars up to 250 mm and over 1 metric ton in weight
Patented pressure controlled grinding and polishing heads from top
Angle adjustable buffing heads with automatic wear compensation

Applications:
Mainly in steel works for surface improvements prior to plating, descaling, deburring, superfinishing, finishing for surface checking by ultrasonic, removing surface defects, decorative grinding and polishing, microfinish surface, satin finishing, chrome finishing, improving corrosion resistance, removing of coatings ...

Workpiece:
Tubes, bars, pipe, profiles for furniture industry, decorative stainless, shop interior, engine components, axles, precision engine parts, paper tubes, fiber and kevlar tubes, golf shafts, stainless tube, heat element, door handle, peeled bar, hydraulic cylinder rod, telescopic cylinders, chrome bar, steel bar, boiler tube, rods ...
