Machine weight: 3,200 kg
... precision optics grinding machine covers a wide workpiece range from 5–200 Ø in mm. The unique dual-spindle technology and axis design enables superior speed and consistent processing of spheres, aspheres, & freeform ...
... cylindrical grinding machines with a horizontal axis and up to four high-frequency spindles are the perfect solution for drilling and surface grinding of internal diameters and profiles ...
Spindle speed: 900 rpm
Machine weight: 5,000 kg
... which achieves taper grinding with high accuracy. Continuous automatic grinding in one clamping 1 each of internal and external grinding spindle is equipped on a turret-type wheelhead which enables ...
DMG MORI
Power: 22, 45, 60, 30 kW
Distance between centers: 5,000, 4,000, 2,000, 3,000, 1,000 mm
Speed: 60, 120 m/s
... detail to machine high-value workpieces up to 5000 mm in length with maximum precision. If you check all the HG’s details, you will see that it is not just another grinding machine We have taken ...
DANOBATGROUP
... Check Valves and ‘ horizontal’ mounted seats of Globe and Safety valves, in the range 6 – 24”. The unique orbital, – mechanical – gear driven grinding heads results in a very high material removal rate, perfect cross ...
Spindle speed: 10,000 rpm
Power: 24 kW
X travel: 450 mm
... is aimed at grinding medium-sized and large-sized HSS and carbide material, especially at applications of aerospace and automobile. It is widely used for standard tools, special tools, re- grinding, batch grinding, ...
Topwork Industry Co., Ltd.
Spindle speed: 500 rpm - 5,500 rpm
Power: 3.7 kW
X travel: 300 mm
... delivers intuitive operation and versatile punch grinding solutions. 7 Built-in punch modules – easy to set up and customize Auto path generation & simulation – precise, collision-free grinding One-cycle grinding ...
Topwork Industry Co., Ltd.
Spindle speed: 10,000, 3,000 rpm
Power: 2.5 kW
X travel: 30 mm
... diameter 0.1 to 20 mm. The maximal grinding length is 330 mm and the length/diameter ratio is up to 350x D. Features Machine structure The bed of the machine is designed as box-type structure, ...
Topwork Industry Co., Ltd.
... For belt grinding, polishing and superfinishing of screw flights and flanges using the single belt with 4-NC axis or two working head configuration with 7-NC axis. The Sigma with 2 working stations is designed for fully automatic belt ...
Power: 1.4, 1.1 kW
X travel: 150 mm
Y travel: 1,500 mm
... Quality 100 % Made in Germany The series C 150 S is a robust flat platen belt grinding machine for heavy duty operations. Machine Characteristic Adjustable horizontal to vertical 2 ...
Spindle speed: 3,000 rpm
Grinding wheel diameter : 610 mm
Machine weight: 5,200, 7,500, 9,500 kg
... RHC Series not only with the features of centerless grinding machine but also with design of spindle fixed elements, which is double support, big span and like hugging. It’s not only to improve stiffness, but also make ...
PARAGON MACHINERY CO., LTD.
Machine weight: 5,000 kg
... Max. 8 faces grinding in one cycle Twin grinding spindles configuration for internal and cylindrical grinding Eliminate repetitive chucking error of workpiece Reduce cycle time Grinding ...
PARAGON MACHINERY CO., LTD.
Machine weight: 3,000 kg
... The RIG series internal grinding machine is suitable for inner diameter of workpiece. The efficient and reliable programming of grinding and dressing cycles is suitable for mass production and ensures ...
PARAGON MACHINERY CO., LTD.
... Abrasive belt sanding machine for precision processing on a horizontal plane, equipped with a thick and removable work surface that can be rectified is fixed on 4 springs to allow for expansion, avoiding ...
GECAM SRL

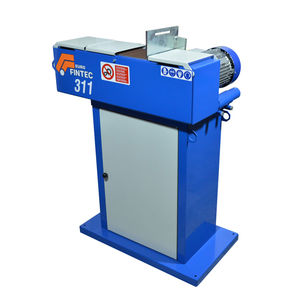

... Abrasive belt sander for flat, horizontal and vertical 2-speed working with belt tensioning system through a practical handwheel that acts on a fork that supports the tensioner roller on both sides, this ...
GECAM SRL

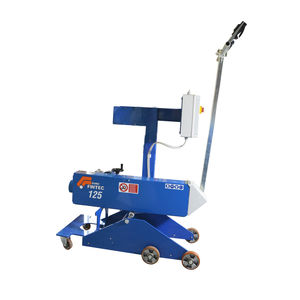

... Abrasive belt grinding machine on wheels for removing welds or grinding large flat surfaces. One speed machine with electrical system equipped with start, stop and emergency ...
GECAM SRL
Spindle speed: 10 rpm - 300 rpm
Power: 5.5 kW
Distance between centers: 400 mm
... features a linear motor-driven cross-slide, enhancing machine rigidity and stability while reducing cycle times to meet the demands of high-efficiency, high-precision grinding. This series is ideal for machining ...
TOPKING
Power: 11 kW - 25 kW
... removing surface defects, decorative grinding and polishing, microfinish surface, satin finishing, chrome finishing, improving corrosion resistance, removing of coatings Over thousands sucessful delivered machines ...
Spindle speed: 30,000 rpm
Grinding wheel diameter : 50, 500 mm
Speed: 50 m/s
... >This composite grinding machine integrates external cylindrical and internal grinding functions with X, Z1, Z2 and C axes. X axis uses a linear motor direct drive for lateral feed; Z1 is external grinding ...
Meijin Machinery Equipment (Dalian) Co., Ltd.
Spindle speed: 1,450, 1,740 rpm
Distance between centers: 460 mm
X travel: 800, 1,200 mm
... Overview
The ETW-4010NC series features a movable
grinding head design for heavy-duty
horizontal peripheral
grinding of flat surfaces. It is intended for
machining flat parts ...
Power: 4 kW
Distance between centers: 1,500, 2,000, 2,200, 3,300 mm
X travel: 120 mm
... 360 [mm] Swing over table 520-540-600-720 [mm] Max distance between centers 1500-2000-2200-3300 [mm] Max diameter of grinding wheel 660-710-815-915 [mm] Max weight between centers (with steady rest) 200-600-600-1200 [kg] ...
AZ spa
Spindle speed: 8,000 rpm
Power: 62 kW
X travel: 700, 1,000 mm
... external cylindrical grinding – the PROFIMAT MC is a highly efficient grinding centre for any application. This extremely compact traveling-column machine offers everything that modern production solutions ...
Speed: 4 m/s - 25 m/s
... Our approved Series of Twin-Belt Grinding Machines Type ZBS and PZM will be completed by this basic machine. Sophisticated technology and experience are integrated in the new development. All necessary ...
Kuhlmeyer Maschinenbau GmbH Band-Schleifmaschinen Belt Grinding Machines
X travel: 2,600 mm
Y travel: 380 mm
... Dressing unit X2-axis140 mm Y2-axis143 mm Y3-axis155 mm Grinding head TypeS500 Power93 kW S1 Wheel mountØ 165 mm Grinding disk diameter min.220 mm Grinding disk diameter max.500 mm Grinding ...
Spindle speed: 0 rpm - 2,000 rpm
... specifications that require sophisticated grinding solutions. The SCG 250’s unique mechanical design combines ideal axis configurations for excellent grinding of large spherical, aspherical, and freeform optics in ...
Spindle speed: 0 rpm - 3,000 rpm
... The horizontal grinding machine is a small, high-precision grinding machine with high cost performance in manual loading, the grinding wheel shaft is ...
... Production: Up to 2000 PPH Post Process Gauging Controlled Grinding Wheels: Stationary Type of Grind: Shearing of 50-70% of stock as component enters wheels Rotary Plunge One piece ground at a time Grinding ...
C & B Machinery
Power: 3 kW
... Table belt grinding machine with vertical and horizontal working position for manual operation. LHV200 is an abrasive belt grinding machine with two ...
Spindle speed: 10,000 rpm - 60,000 rpm

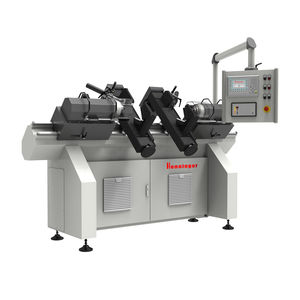

... The Henninger centre grinding machines of the ZS 2000 series machine workpieces on a horizontal basis. Both centres of a workpiece can be ground simultaneously. The centre grinding ...
Henninger

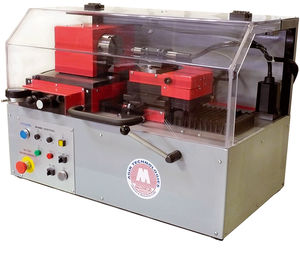

... Semi-automatic horizontal grinding machine – Chuck Ø80 mm – Programme management by computer numerical control – For dies from ø0.80 mm to ø20 mm – Easy to use – Axis management by motor step by step ...
MOUTON - RIVOM
... The sanding band can be easily changed and adjusted High belt speed Vibration free operation With the combination of abrasive and rolls,deburring, surface polishing and laser cutting materials cleaning operations can be done ...
Power: 35 kW - 55 kW
... fitted with three grinding heads, the RailGrind grinding machine has two grinding supports with a vertical grinding spindle on the machine portal for ...
Spindle speed: 0 rpm - 1,200 rpm
Power: 30 kW
... GRINDING METHOD GW INFEED, WORK-DRIVE TYPICAL APPLICATION ・DISC ROTOR FOR AUTOMOBILE ...
Nissei Industry Corporation
Spindle speed: 0 rpm - 3,000 rpm
Power: 15 kW
... Tangential continuous through feed grinder equipped with 1 horizontal spindle Performances Resolution 0.001 mm Modular rigid steel frame combined with prestressed concrete Measurement and automatic servo ...
Linear Abrasive Engineering S.A.
Power: 13 W
... Beveling Edge Grinding Machine in Horizontal Type 1. 1-year guarantee 2. 20-year service life of the motor 3. 3000-meter service life of the grinding wheels 4. Workable for glass ...
Qingdao TOYO Industry Company
... The horizontal flat- grinding machine is earmarked for the cold working of flat surfaces of glass and ceramic articles, stone, etc. Hand-held articles are pushed against the top surface of the abrasive ...
Spindle speed: 25 rpm - 500 rpm
Power: 4 kW
Speed: 45 m/s
... height: 180 mm
Knuth Machine Tools
Spindle speed: 25 rpm - 500 rpm
Power: 4 kW
Speed: 45 m/s
... measuring
systems are enclosed or protected for near maintenance-free operation
Grinding headstock
- Grinding head runs on premium linear guides for maximum positioning accuracy
- Robustly
Knuth Machine Tools
Spindle speed: 16,000 rpm
Power: 5,625 kVA
Speed: 38 m/s
... : 5.625 kVA
Dimensions and weight
Grinding wheel dimensions: 400 mm x 50 mm x 203 mm
Grinding wheel (inside
grinding) max.: 50 mm x 40 mm x 16 mm
Grinding wheel ...
Knuth Machine Tools
Speed: 3 mm/min
Machine weight: 6,000 kg
... Accuracy
·
Horizontal layout based on center rotation, five-axis
machining accuracy will hardly lose with the increase of tool diameter and length
· Closed-loop control enhances the dynamic accuracy
Automation
· ...
Spindle speed: 1,000 rpm - 2,000 rpm
Power: 4 kW
Grinding wheel diameter : 356 mm
... The integrated removal measurement
system provides precise monitoring of removed material (display accuracy ±0.1 mm at 1 mm removal) across sample types and hardness levels.
Grinding stones and diamond grinding ...
Spindle speed: 1,400 rpm
Grinding wheel diameter : 330 mm
Machine weight: 350 kg
... the table and the grinding head, 330 mm dia., can be laterally moved either manually or automatically in both directions so, the only manual operation requested is the lowering of the grinding head by the top hand wheel. The ...
Spindle speed: 1,100 rpm
Power: 0.3 kW
... manufactures. Both models are characterized by quite easy handling and silent, vibration-free running. MADO machines comply, of course, with the EC Machine Norms for Safety and Hygiene. MADO is certified according to ...
