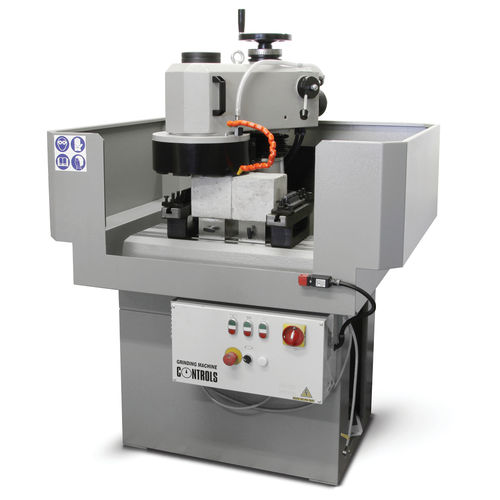

Concrete specimens grinding machine 55-C0201 Series

surfacehorizontalautomatic

The Concrete and Rock Specimen Grinding Machine is used to grind and polish concrete specimens, natural stones, ceramic materials. Used to grind and polish concrete specimens, natural stones, ceramic materials, etc. Proposed in two versions: • 55-C0201/B standard version in which the lateral displacement of the grinding head is motor operated and actuated by a push button. • 55-C0201/C Automatic version in which the lateral displacement is fully automatic and controlled by travel limit switches. All the other characteristics are identical. The cube and cylinder specimens can be easily locked on the table and the grinding head, 330 mm dia., can be laterally moved either manually or automatically in both directions so, the only manual operation requested is the lowering of the grinding head by the top hand wheel. The machine is supplied complete with safety chip guard that, when removed, stop automatically the machine, with coolant tank, motor pump and one set of abrasive sectors. Diamond grinding sectors are available on request (see accessories). The 45-D0534/B and 45-D0534/C Core face preparation jigs can be easily fitted by the clamping element C0200/50 + C0201/10. The machine is supplied without accessories for clamping the samples, which must be purchased separately. • It’s used to grind concrete specimens, natural stones, tiles, block pavers, ceramic materials etc. • It features a large base table for grinding contemporaneously up to three 100 mm cubes, or three 150 mm cubes, or two 200 mm cubes and concrete/tile blocks of various sizes (see drawing of working area). • It works with cylinders up to dia. 160×320 mm
