Electric core drilling machine 32-C0330 seriescolumn type
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Other characteristics
- column type
- Drill diameter
Max.: 100 mm
(3.94 in)Min.: 8 mm
(0.31 in)- Rotational speed
1,485 rpm, 2,720 rpm
(9,330.53 rad.min-1, 17,090.26 rad.min-1)
Description

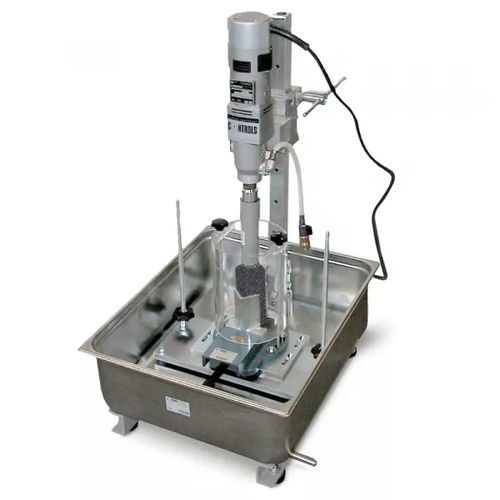

Laboratory Coring Machine is specifically used in the laboratory for cutting core samples from hard materials.
This machine is specifically used in the laboratory for cutting core samples from hard materials such as rock and concrete. A clamp is provided to firmly secure the material during the cutting cycle. The coring area is protected by a transparent cylinder. A special clamping device to prepare rock samples from core pieces is also available. See accessories. Drill bits are not included. See accessories.
• Power unit: 1800 W
• Dimensions of the base tray assembly: 600x500x200 mm.
• Weight approx.: 80 kg
