Tool grinding machine TA-5

spindle taperhorizontalCNC

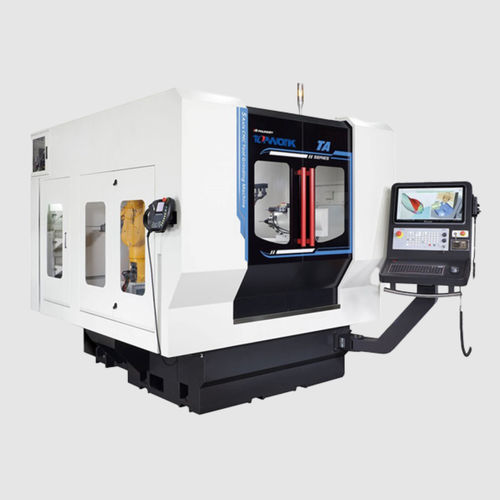

The TA-5 CNC tool grinder features highly rigid structural design and is aimed at grinding medium-sized and large-sized HSS and carbide material, especially at applications of aerospace and automobile. It is widely used for standard tools, special tools, re-grinding, batch grinding, and mixed batch grinding, etc. high power output spindle and unmanned operation, while it remains stability and precision during the grinding process. Features TA-5 Structure 1. Horizontal structure with high rigidity. 2. Built-in spindle HSK-50E. 3. 3D tool probe/grinding wheel probe, automatically detects changes to improve machining accuracy. 4. Workhead A axis spindle taper is BT50,driven by direct drive motor. 5. Built-in spindle HSK-50E and grinding wheel automatic exchange system with 4 sets of grinding wheels for exchange; each group of 3 wheels with maximum wheel diameter of Ø150 mm and the longest wheel position of 200 mm. 6. Optional Swiss STAUBLI TX2-60 robot loader with high degree of freedom and flexibility. 7. The internal storage bin of the optional machine accommodates 4 workpieces with a diameter of Ø3 to 16 mm. Grinding Wheel Spindle Built-in Spindle Spindle Type is HSK-50E High Rigidity High Precision High Power and High Torque Low Vibration Grinding Wheel Changer TA-5 is equipped with 4 sets of grinding wheels, with up to 3 wheels/set, Spindle type is HSK-50E. For changing the roughing, finishing and polishing wheels, Choose appropriate cutting oil and filter equipment for grinding of different materials, such as tungsten steel, HSS, and stainless steel. A-axis Workhead Direct Drive Motor Workhead Taper is BT50. The Concentricity is Within 2 um.
