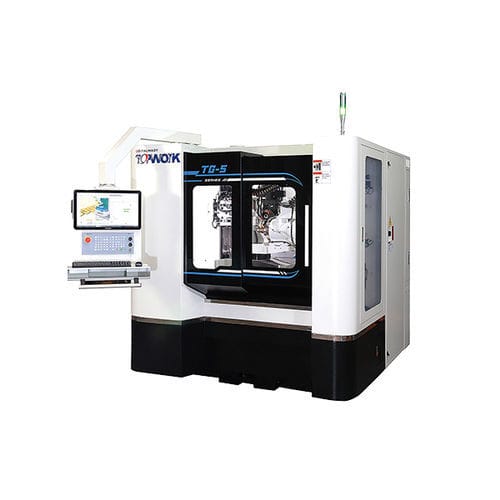

Tool grinding machine TG-5

CNC5-axisprecision

The TG-5 CNC tool grinder is flexible, precise, and economical. Its cost-effectiveness with the world famous NUM Flexium+ 68 controller and NUMROTOplus® software features versatile functions, for instance, excellent tool designs, 3D simulation, and collision monitoring. 5-axis simultaneous motion design achieves 0.1 μm precision, and efficiently handles various types of grinding technical problems while in operation. It is the best solution to meet your needs and realise an intelligent production system in the era of industry 4.0. Features TG-5 Structure 1. Belt-driven spindle type is BBT30 or optional HSK-50C to enhance the accuracy and rigidity of grinding wheel flange. 2. Built-in spindle type is HSK-50C with high accuracy and minimum vibration (optional). 3. A-axis Workhead spindle internal cone BT50 is driven by worm gears. 4. Optional A-axis workhead direct drive motor with internal cone BT50. 5. Optional built-in spindle HSK-50E and grinding wheel automatic exchange system with 2 sets of grinding wheels for exchange; each group of 3 wheels with maximum wheel diameter of Ø150 mm and the longest wheel position of 200 mm. 6. 3D tool probe/grinding wheel probe automatically detects changes and makes corrections to improve machining accuracy. 7. Optional FANUC LR Mate 200iD robot loader to meet the needs of automated production. 8. The optional storage bin in a separate space can accommodate 4 sets of workpieces with a diameter of Ø3-16 mm. Grinding Wheel Spindle Belt-driven Spindle Spindle Type is BBT30 Economical Type Low maintenance Cost A-axis Workhead Worm Drive Workhead Taper is BT50. Consisting of Worm and Worm Gear
