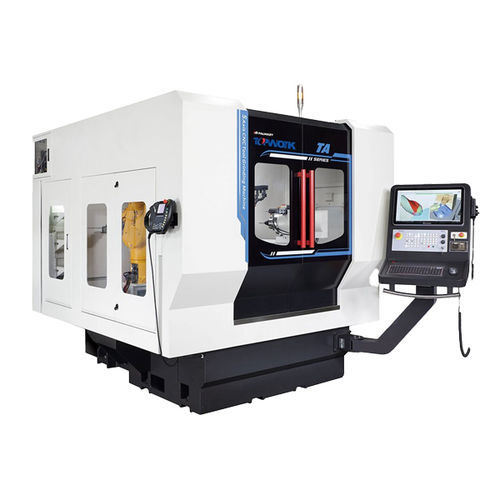

Tool grinding machine TA-5 PLUS

for large workpiecesCNCmedium-sized

High-rigidity structure with powerful spindle motor, ideal for medium to large-diameter components. Synchronous U-axis for enhanced precision — optimized for long drill tools and automation systems. Equipped with an automatic 3-pack grinding wheel changer (up to 9 wheels total), enabling tool grinding finish, and polish grinding in a single cycle Features Automatic grinding wheel changer TA-5 PLUS is equipped with 3 wheel package and coolant distributor. Each pack is with up to 3 pcs of wheels/set. It will Auto. change to different wheel package as per the process procedures to perform rough grinding, finish grinding and polish grinding at one time. Spray oil device with 2 areas separately; it's the new design for grinding area and tooling area. It can cool down the grinding wheel temperate while grinding. V-support seat By U axis supporter synchronous with grinding position. It can suppress the run out issue for long workpiece during grinding; it also can setting the fixing position for supporter. The workpiece supporter adding the depress-ing new design to assure long workpiece the cutting edge grinding stability.
