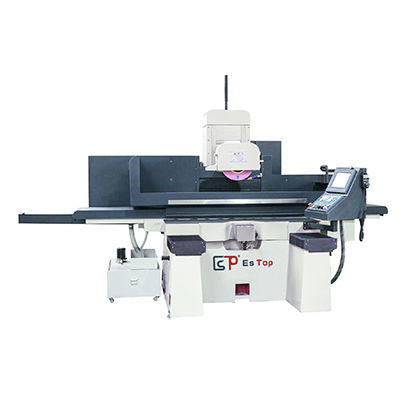

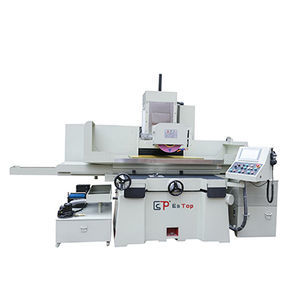

Surface grinding machine ETW-4010NC

flatfor metal sheetsworkpiece

Overview
The ETW-4010NC series features a movable grinding head design for heavy-duty horizontal peripheral grinding of flat surfaces. It is intended for machining flat parts used in machinery manufacturing, automotive, mold steel plate, tooling and similar industrial applications. Two table options are available: electromagnetic table 690×300 mm (ETW-3069) or 1000×400 mm (ETW-40100).

Main features

• Cast-iron bed for structural rigidity and stable operation.
• Worktable longitudinal (X) travel driven hydraulically with stepless speed regulation.
• Carriage horizontal guide rail uses steel guideway structure for wear resistance and consistent accuracy.
• Grinding-wheel spindle driven by an external low-vibration motor for smooth operation.
• Continuous automatic lubrication for bed and worktable rails; inching lubrication for columns, carriage and grinding-head rails to reduce wear and maintain precision.

Technical specifications

• Model: ETW-4010NC
• Electromagnet table size (x*y): 690 × 300 mm (ETW-3069) ; 1000 × 400 mm (ETW-40100)
• Left/right (X) travel: 800 mm (ETW-3069) ; 1200 mm (ETW-40100)
• Front/back (Y) travel: 380 mm (ETW-3069) ; 480 mm (ETW-40100)
• Max center of wheel to table: 460 mm
• Worktable maximum loading capacity: 600 kg (ETW-3069) ; 800 kg (ETW-40100)
• Table T-slot specification: 14 × 3
• Worktable feed speed: 5–30 m/min
• Front/back automatic feed: 0.05–15 mm
• Front/back fast moving speed (50Hz/60Hz): 990 / 1190 m/min
• Grinding wheel maximum size: ø350 × ø127 × 20–50 mm
• Grinding wheel speed (50Hz/60Hz): 1450 / 1740 RPM
• Z axis hand-wheel feed increment: 0.01–0.08 mm
• Z axis up/down fast moving speed: 230 m/min
• Spindle motor: 15 × 4 (HP*P)
• Z axis motor power: 1000 W
• Hydraulic motor: 3 × 6 (HP*P)
• Cooling motor: 90 W
• Front/back servo (Y axis) motor: 1000 W
• Machine dimensions (L × W × H): 3060 × 1600 × 2300 mm or 3150 × 1600 × 2300 mm
• Weight: 3600 kg / 3700 kg
