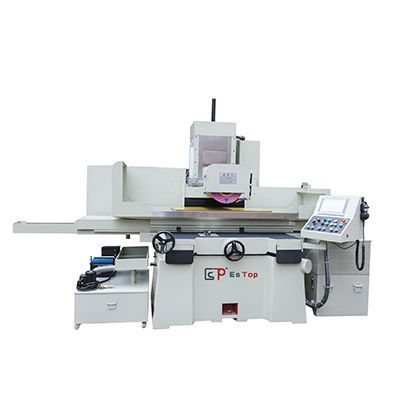

Horizontal disc grinding machine ETW-50100NC
surfaceflatworkpiece

Horizontal disc grinding machine - ETW-50100NC - ESTOPCNC - surface / flat / workpiece
Horizontal disc grinding machine - ETW-50100NC - ESTOPCNC - surface / flat / workpiece
Horizontal disc grinding machine - ETW-50100NC - ESTOPCNC - surface / flat / workpiece - image - 2
Horizontal disc grinding machine - ETW-50100NC - ESTOPCNC - surface / flat / workpiece - image - 3
Add to favorites
Compare this product

Characteristics

Type
surface, flat, horizontal disc
Applications
workpiece
Structure
with moving table, with magnetic clamping
Control type
NC
Number of axes
3-axis
Features
stationary, large-size
Other characteristics
hydraulic, heavy-duty, electric motor driven
Spindle speed

1,450 rpm, 1,740 rpm
(9,111 rad.min-1, 10,933 rad.min-1)

X travel

1,200 mm, 1,500 mm
(47.24 in, 59.06 in)

Y travel

580 mm, 710 mm
(22.83 in, 27.95 in)

Grinding wheel diameter

350 mm
(14 in)

Speed

230 mm/min
(0.15 in/s)

Machine weight

4,800 kg, 4,900 kg
(10,582.19 lb, 10,802.65 lb)

Description

Overview
This series features a movable grinding head designed for heavy-duty surface grinding using the periphery of the grinding wheel. It is intended for flat grinding of parts used in machinery manufacturing, automotive, mould steel plates, tools and similar industrial sectors.

Key Features
  • Bed: integral casting for high rigidity and stable operation.
  • Workbench longitudinal movement: hydraulic drive with stepless speed regulation.
  • Carriage horizontal guide: steel guide rail structure for wear resistance and steady accuracy.
  • Grinding wheel spindle: driven by an external low-vibration motor for smooth rotation.
  • Lubrication system: continuous automatic lubrication for bed and workbench rails; intermittent lubrication for columns, carriage and grinding head rails to reduce oil loss and rail strain.


Technical Specifications
  • Model: ETW-50100NC (also available ETW-63125)
  • Product type: Horizontal grinding wheel spindle grinder / Surface grinding machine
  • Electromagnet table (x*y): 1000 x 500 mm (ETW-63125: 1250 x 630 mm)
  • X axis (left/right) travel: 1200 mm (ETW-63125: 1500 mm)
  • Y axis (front/back) travel: 580 mm (ETW-63125: 710 mm)
  • Max center of wheel to table: 490 mm
  • Worktable maximum loading capacity: 900 kg (ETW-63125: 1000 kg)
  • Table T-slot specification: 18 x 3
  • Worktable feed speed: 5–30 m/min
  • Front/back automatic feed: 0.05–15 mm
  • Front/back fast moving speed (50Hz/60Hz): 990 / 1190 mm/min
  • Max grinding wheel size: 350 x 127 x 20–50 mm
  • Grinding wheel speed (50Hz/60Hz): 1450 / 1740 RPM
  • Z axis hand wheel feed scale: 0.01–0.08 mm
  • Z axis up/down fast moving speed: 230 mm/min
  • Spindle motor: 15 x 4 (HP*P)
  • Z axis motor (up/down): 1500 W
  • Hydraulic motor: 5 x 6 (HP*P)
  • Cooling motor: 90 W
  • Y axis servo motor (front/back): 1000 W
  • Machine tool profile size (L x W x H): 3500 x 2700 x 2300 mm
  • Approximate weight: ≈4800 kg (ETW-63125: ≈4900 kg)


Applications
  • Flat surface grinding of components in machinery manufacturing
  • Automotive parts finishing
  • Mould and die plate grinding
  • Tool and cutter surface grinding

Other ESTOPCNC products

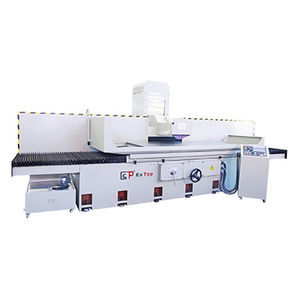

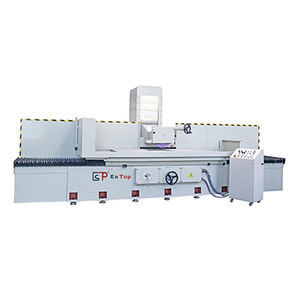

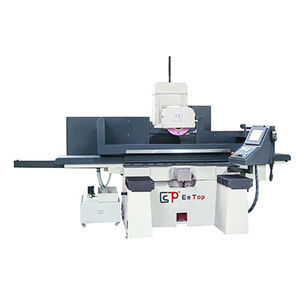

Surface Grinding machine
