Surface grinding machine ETD-80300AHD
workpiecewith magnetic clampingtravelling column

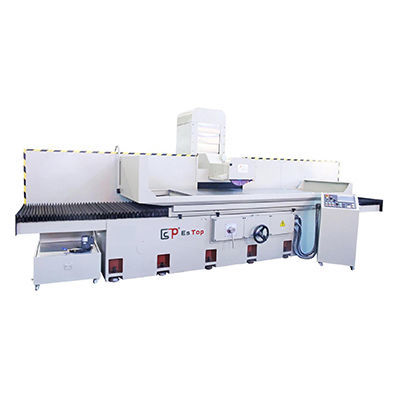

Surface grinding machine - ETD-80300AHD - ESTOPCNC - workpiece / with magnetic clamping / travelling column
Surface grinding machine - ETD-80300AHD - ESTOPCNC - workpiece / with magnetic clamping / travelling column
Surface grinding machine - ETD-80300AHD - ESTOPCNC - workpiece / with magnetic clamping / travelling column - image - 2
Surface grinding machine - ETD-80300AHD - ESTOPCNC - workpiece / with magnetic clamping / travelling column - image - 3
Add to favorites
Compare this product

Characteristics

Type
surface
Applications
workpiece
Structure
travelling column, with magnetic clamping
Control type
automatic, manual
Features
large-size
Other characteristics
high-precision, heavy-duty
Spindle speed

1,450 rpm, 1,740 rpm
(9,111 rad.min-1, 10,933 rad.min-1)

Distance between centers

560 mm
(22 in)

X travel

3,200 mm, 4,200 mm
(125.98 in, 165.35 in)

Y travel

870 mm
(34.25 in)

Grinding wheel diameter

350 mm
(14 in)

Machine weight

12,000 kg, 13,500 kg
(26,455.47 lb, 29,762.41 lb)

Description

Product Overview
The ETD-80300AHD is a column-movable surface grinding machine designed for metalworking applications. Offered in two worktable variants (PCD-80300: 3000×800 mm and PCD-80400: 4000×800 mm), it covers a wide range of grinding tasks from heavy stock removal to fine finishing. The machine structure (base, column and table) uses a high-elasticity design to preserve rigidity and accuracy while ergonomic controls improve operator efficiency.

Main features
  • Column-movable design for extended X-axis travel (PCD-80300/PCD-80400)
  • Electromagnetic worktable available in 3000×800 mm or 4000×800 mm
  • Wide feed ranges: manual handwheel and automatic feed settings
  • High rigidity due to high-elasticity base, column and table construction
  • Operator-friendly layout with front-mounted handles and control panel cross-movement setup
  • Compatible with standard grinding wheels up to 350×127×20–50 mm


Technical data
  • Model: ETD-80300AHD (variants: PCD-80300 / PCD-80400)
  • Type: Column-movable surface grinding machine
  • Electromagnet table (x×y): 3000×800 mm (PCD-80300) / 4000×800 mm (PCD-80400)
  • X-axis travel (left/right): 3200 mm (PCD-80300) / 4200 mm (PCD-80400)
  • Y-axis travel (front/back): 870 mm
  • Max center of wheel to table: 560 mm
  • Worktable max load: 3000 kg
  • Table T-slot: 18×3 mm
  • Worktable feed speed: 5–30 m/min; Front/back automatic feed: 0.1–8 mm
  • Fast traverse (50Hz/60Hz): 990 / 1190 mm/min
  • Grinding wheel max size: 350×127×20–50 mm; Speed (50Hz/60Hz): 1450 / 1740 RPM
  • Z-axis handwheel scale: 0.005/0.2 mm; Z fast move: 230 mm/min
  • Spindle motor: 15×4 (HP*P); Hydraulic motor: 10×6 (HP*P); Cooling motor: 90 W
  • Machine dimensions (L×W×H): 8200×3050×2250 mm (PCD-80300) / 11000×3050×2250 mm (PCD-80400)
  • Approx. weight: ≈12000 kg (PCD-80300) / ≈13500 kg (PCD-80400)


Applications & options
  • Suitable for tooling, automotive, mold and general metal component surface grinding
  • Options: control upgrades, custom table fixtures, wheel guards and coolant systems
  • Contact supplier for installation requirements, electrical specifications and tailored configurations
