Surface grinding machine ETD-80200NC

workpiececolumn typewith magnetic clamping

Product Overview

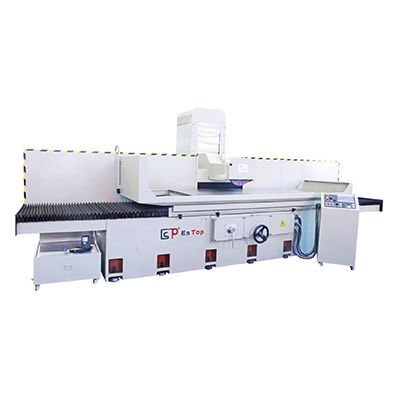

Column-type movable surface grinding machine ETD-80200NC designed for a broad range of grinding tasks from heavy stock removal to precision finishing. Rigid base, column and table construction provides dimensional stability and reduced deformation. Ergonomic control layout and grouped front handles simplify operation and maintenance.

• Front-mounted concentrated handles for easy operator access
• Cross (X) movement set-up available on control panel
• Ergonomic design for straightforward operation

Technical Table (selected parameters)
Main item: Column movable Surface Grinding machine
Models: ETD-80160 | ETD-80200
Unit: as indicated per parameter

Worktable - Electromagnet table size (x*y): 2000 x 800 mm
Left and right X axis travel: 2200 mm
Front/back Y axis travel: 870 mm
Max center of wheel to table: 560 mm
Worktable Maximum loading capacity: 3000 kg
Table t-slot specification: 18 x 3
Worktable feed speed: 5-30 m/min
Front/back Hand wheel feed degree scale: 0.02/5 mm
Front/back Automatic feed: 0.1-8 mm
Front/back (50HZ/60HZ) Fast moving speed: 990/1190 m/min
Grinding wheel size max: 350 x 127 x 20-50 mm
(50HZ/60HZ) Grinding wheel speed: 1450/1740 R.P.M
Up/down Hand wheel feed degree scale (Z axis): 0.005/0.2 mm
Up/down Fast moving speed (Z axis): 230 m/min
Spindle motor: 15 x 4 HP*P
Z axis motor (up/down): 1/4 x 6 W
Hydraulic motor: 10 x 6 HP*P
Cooling motor: 90 W
In front and back servo, The Y axis motor: 1/4 x 6 W
Machine Tool Profile size L x W x H: 5500 x 3050 x 2250 mm
Weight (approx.): ≈9200 kg (ETD-80200)

Technical specifications

• Model: ETD-80200NC
• Electromagnet table size (x*y): 2000 x 800 mm
• Left and right X axis travel: 2200 mm
• Front/back Y axis travel: 870 mm
• Max center of wheel to table: 560 mm
• Worktable maximum loading capacity: 3000 kg
• Table T-slot specification: 18 x 3
• Worktable feed speed: 5-30 m/min
• Front/back hand wheel feed degree scale: 0.02/5 mm
• Front/back automatic feed: 0.1-8 mm
• Front/back fast moving speed (50/60Hz): 990/1190 m/min
• Grinding wheel maximum size: 350 x 127 x 20-50 mm
• Grinding wheel speed (50/60Hz): 1450/1740 RPM
• Z axis hand wheel feed degree scale: 0.005/0.2 mm
• Z axis fast moving speed: 230 m/min
• Spindle motor: 15 x 4 HP*P
• Z axis motor (up/down): 1/4 x 6 W
• Hydraulic motor: 10 x 6 HP*P
• Cooling motor: 90 W
• Y axis servo motor (front/back): 1/4 x 6 W
• Machine size (L x W x H): 5500 x 3050 x 2250 mm
• Weight: ≈9200 kg
