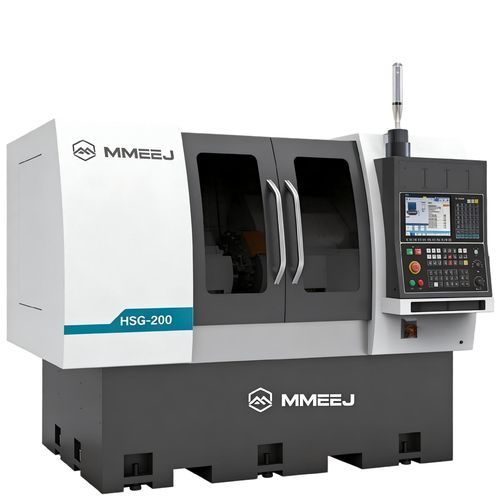

Internal cylindrical grinding machine MKS2 series

for workpieceshorizontalCNC

Overview
This composite grinding machine integrates external cylindrical and internal grinding functions with X, Z1, Z2 and C axes. X axis uses a linear motor direct drive for lateral feed; Z1 is external grinding feed, Z2 is internal grinding feed; C axis is servo-driven for workpiece rotation; Z axis uses an intelligent ball screw drive. Two models are available to match required grinding length and diameter ranges.

Technical specifications

• Model options: MKS2720×500 and MKS2732×1000.
• Center height: 180 mm (both models).
• Grinding diameter range (cylindrical specimens): MKS2720×500: 08–200 mm; MKS2732×1000: 08–320 mm.
• Maximum grinding length of outer circular specimen: MKS2720×500: 500 mm; MKS2732×1000: 1000 mm.
• Grinding hole range of inner circular specimens: 10–80 mm (both).
• Depth of grinding hole for inner specimens: 125 mm (both).
• Minimum feed rate of grinding wheel stand: 0.0005 mm.
• Minimum feed rate of worktable: 0.001 mm.
• Minimum resolution of XZ-axis drive servo system: 0.0001 mm.
• Z-axis normal feed rate: 10 m/min.
• X-axis normal feed rate: 8 m/min.

Grinding heads and spindles

• Cylindrical grinding head (standard): imported well-known brand electric grinding spindle.
• Cylindrical grinding wheel maximum: 500 × 63 × 203 mm.
• Cooling method (grinding heads): circulating water cooling.
• Sealing method: front gas seal.
• Linear surface speed: 50 m/s.
• Internal grinding head (standard): domestic well-known brands; cooling: circulating water cooling.
• Internal grinding spindle speed: 30000 rpm (standard).
• Internal grinding wheel: 50 × 25 × 10 mm.

Tooling and control

• Tool turret (B-axis): workstation T4 (standard).
• Turret drive options: mechanical turntable or DDR direct drive turntable.
• Rotation angle: +30° to -280°.
• Turntable positioning accuracy: ±5 / ±2.5 (depending on configuration).
• Control method: closed-loop control.

Typical applications

• Designed for combined external and internal grinding of cylindrical parts, including special-shaped surfaces using coordinated X, Z and C axis movements.
• Suitable for machining shafts, bearings, hydraulic components and other cylindrical parts in series production and repair workshops.
