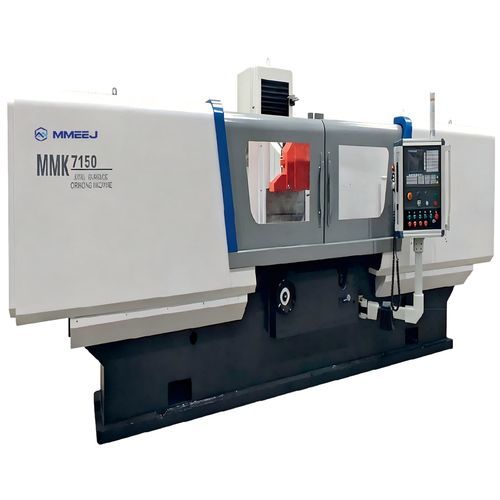

Surface grinding machine 71 series

flatworkpiecehorizontal

Main features and performance:
The Series 71 Horizontal-Spindle, Rectangular-Table Surface Grinder is configured as a cross-slide layout for models with a table width ≤ 400 mm and as a moving-column layout for models with a table width > 400 mm. It grinds flat workpiece surfaces using the periphery of the grinding wheel; the wheel face can also be used to grind vertical surfaces and grooves. Suitable for machining rectangular tables, steel-insert guide rails, cemented carbide components and for precision finishing of a variety of parts.

Specification table (rows represent specification items; columns represent units and model values):
Items | Unit | MG7125 | MMCK7125 | MMCK7140×8 | MMK7150 | MT7160×16 | MT7180
Dimensions of table | mm | 250×630 | 250×630 | 400×800 | 500×2000 | 600×1600 | 800×2000
Grind dimensions for workpiece | mm | 250×630×375 | 250×630×375 | 400×800×430 | 500×2000×550 | 600×1600×550 | 800×2000×550
Table travel | mm | 700 | 700 | 870 | 2000 | 2200 | 2200
Saddle cross travel | mm | 300 | 300 | 450 | 560 | 680 | 820
Saddle cross travel speed | mm | 15～1500 | 0～1400 | 0～1400 | 10～950 | 75～1500 | 75～1500
Manual micro feed | mm | 0.002 | 0.002 | 0.002 | 0.001 | 0.01 | 0.01
Distance between the spindle center and table | mm | 550/110 | 550/100 | 605/110 | 775/160 | 775/160 | 775/160
Workpiece roughness | μm | Ra≤0.08 | Ra≤0.16 | Ra≤0.16 | Ra≤0.16 | Ra≤0.63 | Ra≤0.63
Table planeness | mm | 0.003/300 | 0.005/300 | 0.005/300 | 0.008/1000 | 0.01/1000 | 0.01/1000
Machine weight | kg | 3200 | 3200 | 4200 | 12000 | 12000 | 14500

Technical characteristics / specifications:

• Series: Series 71 Horizontal-Spindle, Rectangular-Table Surface Grinder
• Layout: Cross-slide layout for table width ≤ 400 mm; moving-column layout for table width > 400 mm
• Primary function: Grind flat surfaces with the wheel periphery; use wheel face for vertical surfaces and grooves
• Applications: Rectangular tables, steel-insert guide rails, cemented carbide components, precision finishing of various parts
• Models and table dimensions (mm): MG7125 250×630; MMCK7125 250×630; MMCK7140×8 400×800; MMK7150 500×2000; MT7160×16 600×1600; MT7180 800×2000
• Grind dimensions for workpiece (mm): MG7125 250×630×375; MMCK7125 250×630×375; MMCK7140×8 400×800×430; MMK7150 500×2000×550; MT7160×16 600×1600×550; MT7180 800×2000×550
• Table travel (mm): MG7125 700; MMCK7125 700; MMCK7140×8 870; MMK7150 2000; MT7160×16 2200; MT7180 2200
• Saddle cross travel (mm): 300 / 300 / 450 / 560 / 680 / 820 (per model)
• Saddle cross travel speed (mm): model-dependent ranges (e.g. 15～1500; 0～1400; 10～950; 75～1500)
• Manual micro feed (mm): 0.002 / 0.002 / 0.002 / 0.001 / 0.01 / 0.01 (per model)
• Spindle center to table distance (mm): values per model (e.g. 550/110; 550/100; 605/110; 775/160)
• Workpiece surface roughness (μm): up to Ra≤0.08 on certain models; up to Ra≤0.63 on larger models
• Table planeness (mm): from 0.003/300 to 0.01/1000 depending on model
• Machine weight (kg): 3200 / 3200 / 4200 / 12000 / 12000 / 14500 (per model)
