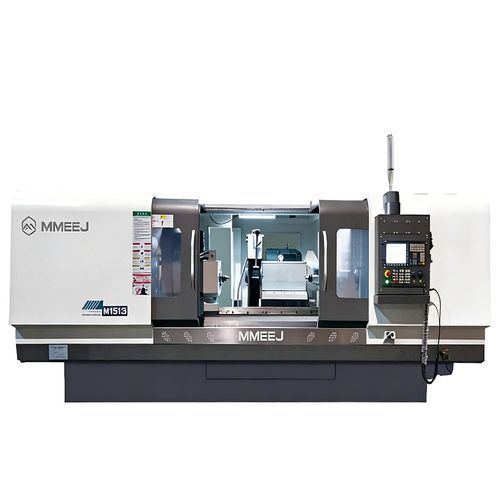

External cylindrical grinding machine MK series

glassworkpiecehorizontal

Overview
The machine adopts a T-shaped movable table layout. Foundation members are produced by resin sand casting; main structure is HT300 pearlitic cast iron for high stiffness and dimensional stability.
Numerical control manages X and Z axes independently and enables X–Z two-axis linkage for automated external cylindrical grinding.
Suitable for grinding workpieces in special materials (glass, sapphire, silicon carbide, carbon fiber, etc.) and for components such as reducers, tool handles and cylinders used in industrial applications.

Specifications

• MK1320B — Distance between centers (mm): 500, 750; Center height (mm): 135; Dia. ground (O.D) (mm): 8–200; Max workpiece weight (kg): 50
• MK1332 — Distance between centers (mm): 1000, 1500; Center height (mm): 180; Dia. ground (O.D) (mm): 8–320; Max workpiece weight (kg): 150
• MK1620B — Distance between centers (mm): 500, 750; Center height (mm): 135; Dia. ground (O.D) (mm): 8–200; Max workpiece weight (kg): 50
• MK1632 — Distance between centers (mm): 1000, 1500; Center height (mm): 180; Dia. ground (O.D) (mm): 8–320; Max workpiece weight (kg): 150
• MK1350 — Distance between centers (mm): 1500, 2000, 3000, 4000; Center height (mm): 270; Dia. ground (O.D) (mm): 25–500; Max workpiece weight (kg): 1000

Workhead

• Center taper (MT): MK1320B 4; MK1332 5; MK1620B 4; MK1632 5; MK1350 6
• Spindle speed / Stepless (r/min) 50Hz: MK1320B 26–260; MK1332 19–190; MK1620B 26–260; MK1632 19–190; MK1350 10–100

Wheelhead

• Max wheel dimension (OD×W×ID) (mm): MK1320B 400×50×203; MK1332 600×75×305; MK1620B 500×75×203; MK1632 600×75×305; MK1350 750×75×305
• Wheel peripheral velocity (m/s): all models 35
• Min set unit (mm): all models 0.0001

Worktable

• Maximum worktable rotation angle (Clockwise °): MK1320B 5 (500), 3 (750); MK1332 3; MK1620B 5 (500), 3 (750); MK1632 3; MK1350 3 (1500), 2 (2000, 3000), 1 (4000)
• Maximum worktable rotation angle (Anticlockwise °): MK1320B 9; MK1332 7 (1000), 6 (1500); MK1620B 9; MK1632 7 (1000), 6 (1500); MK1350 6 (1500), 5 (2000), 3 (3000), 2 (4000)

Tailstock

• Center taper (MT): MK1320B 4; MK1332 4; MK1620B 4; MK1632 4; MK1350 6
• Quill travel (mm): MK1320B 30; MK1332 30; MK1620B 30; MK1632 30; MK1350 70

Note
Values above correspond to the different units/models (MK1320B, MK1332, MK1620B, MK1632, MK1350) as indicated in the specifications table on the product page.
