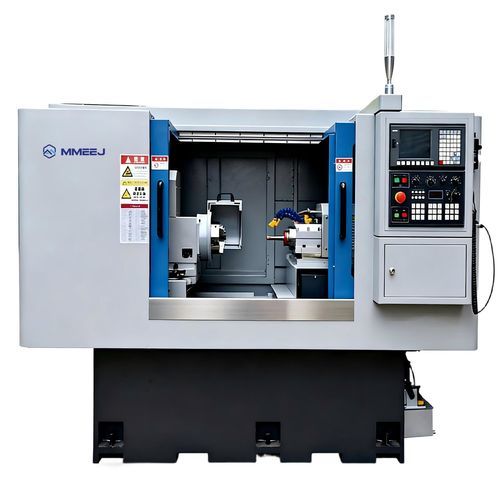

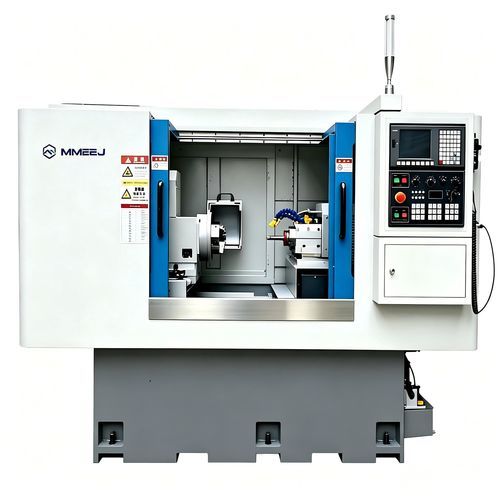

Internal cylindrical grinding machine 50-100workpiecehorizontalCNC
Add to favorites
Compare this product
Characteristics
- Type
- internal cylindrical
- Applications
- workpiece
- Structure
- horizontal
- Control type
- CNC
- Features
- stationary
- Other characteristics
- high-performance
- X travel
500 mm, 600 mm, 800 mm, 1,000 mm, 1,300 mm
(19.69 in, 23.62 in, 31.5 in, 39.37 in, 51.18 in)- Machine weight
50 kg, 150 kg, 500 kg, 1,200 kg
(110.23 lb, 330.69 lb, 1,102.31 lb, 2,645.55 lb)
Description
Short description
This machine range of internal cylindrical grinding machines is equipped with a high-performance CNC control and is designed to machine internal straight bores, internal faces, internal grooves, internal steps, internal fillets, internal tapers and external faces. Spindle options include mechanical or electric versions. Machines can be integrated with robotic automation for high-volume production.
Applications
Spindle options
Automation
Integrable with various robotic automation systems for part loading/unloading and inline high-volume production.
Technical data table (per available model)
Model | Unit | 15-15CNC | 20-20CNC | 20-60CNC | 50-45CNC | 50-100CNC
Maximum Swing Diameter | mm | 530 | 400 | 500 | 800 | 900
Grinding Hole Range | mm | 06–150 | Ø30–200 | Ø30–200 | 50–500 | Ø100–500
Grinding Depth | mm | 150 | 200 | 600 | 450 | 1000
Maximum Table Travel | mm | 500 | 600 | 1000 | 800 | 1300
Maximum Workpiece Weight | kg | 50 | 150 | 500 | 500 | 1200
Grinding Head Spindle Speed | rpm | Select based on the workpiece hole diameter. | Select based on the workpiece hole diameter. | Select based on the workpiece hole diameter. | Select based on the workpiece hole diameter. | Select based on the workpiece hole diameter.
Characteristics / Technical specifications
This machine range of internal cylindrical grinding machines is equipped with a high-performance CNC control and is designed to machine internal straight bores, internal faces, internal grooves, internal steps, internal fillets, internal tapers and external faces. Spindle options include mechanical or electric versions. Machines can be integrated with robotic automation for high-volume production.
Applications
- Internal straight bores
- Internal end faces
- Internal grooves
- Internal steps
- Internal fillets
- Internal tapers
- External end faces
Spindle options
- Mechanical spindle
- Electric spindle
Automation
Integrable with various robotic automation systems for part loading/unloading and inline high-volume production.
Technical data table (per available model)
Model | Unit | 15-15CNC | 20-20CNC | 20-60CNC | 50-45CNC | 50-100CNC
Maximum Swing Diameter | mm | 530 | 400 | 500 | 800 | 900
Grinding Hole Range | mm | 06–150 | Ø30–200 | Ø30–200 | 50–500 | Ø100–500
Grinding Depth | mm | 150 | 200 | 600 | 450 | 1000
Maximum Table Travel | mm | 500 | 600 | 1000 | 800 | 1300
Maximum Workpiece Weight | kg | 50 | 150 | 500 | 500 | 1200
Grinding Head Spindle Speed | rpm | Select based on the workpiece hole diameter. | Select based on the workpiece hole diameter. | Select based on the workpiece hole diameter. | Select based on the workpiece hole diameter. | Select based on the workpiece hole diameter.
Characteristics / Technical specifications
- Product family: Internal Cylindrical Grinding Machine
- Available models: 15-15CNC, 20-20CNC, 20-60CNC, 50-45CNC, 50-100CNC
- Maximum swing diameter (mm): 530 / 400 / 500 / 800 / 900 (by model)
- Grinding hole range (mm): 06–150; Ø30–200; 50–500; Ø100–500 (depending on model)
- Grinding depth (mm): 150 / 200 / 600 / 450 / 1000 (by model)
- Maximum table travel (mm): 500 / 600 / 1000 / 800 / 1300 (by model)
- Maximum workpiece weight (kg): 50 / 150 / 500 / 500 / 1200 (by model)
- Grinding head spindle speed: selectable based on workpiece hole diameter
- Control: high-performance CNC system
- Spindle options: mechanical or electric
- Automation: compatible with robotic automation systems for high-volume production
