surface grinding machine / centerless / cylindrical / for tubes
RPS 377

{{requestButtons}}

Characteristics

  • Type:

    surface, centerless, cylindrical

  • Applications:

    for tubes, for shafts, for round bars

  • Control type:

    NC, digital, PLC-controlled, manually-controlled, automatic, manual

  • Other characteristics:

    high-speed, high-performance, high-productivity, wet, heavy-duty, multi-spindle, high-capacity, with touch screen

  • Power:

    Max.: 25 kW (34 hp)

    Min.: 11 kW (15 hp)

Description

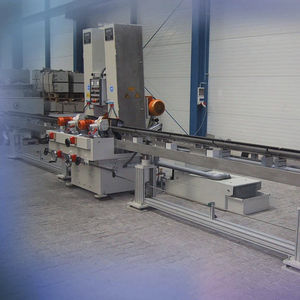

Characteristics of the centerless model RPS 377

Diameter Range up to 500 mm

Belt grinding motor 11 kW bis 22 kW / 15 HP to 30 HP

Belt dimension 150 mm or 200 mm wide x 3500 mm length

Heavy duty roller guides for solid bars up to 250 mm and over 1 metric ton in weight

Patented pressure controlled grinding and polishing heads from top

Angle adjustable buffing heads with automatic wear compensation

Applications:

Mainly in steel works for surface improvements prior to plating, descaling, deburring, superfinishing, finishing for surface checking by ultrasonic, removing surface defects, decorative grinding and polishing, microfinish surface, satin finishing, chrome finishing, improving corrosion resistance, removing of coatings ...
