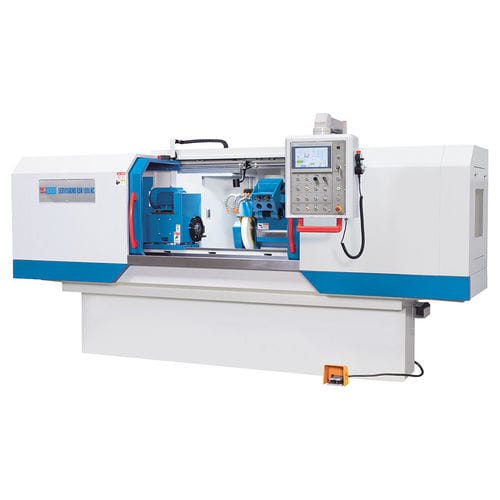

Cylindrical grinding machine

external cylindricalinternal cylindricalworkpiece

Product overview
The Servogrind® RSM 600 NC is a precision cylindrical grinding machine engineered for long, heavy workpieces and small-batch production. Servo motor drives on both axes replace conventional hydraulics to improve dynamics, accuracy and efficiency. The machine includes a pivoting internal grinding unit for added flexibility. A rigid machine bed, ground guideways and powerful spindle drives ensure high stiffness and repeatability. The modern NC touchscreen control enables cycle selection without programming skills and simplifies operation.

Highlights

• NC touchscreen control with dedicated grinding cycles
• External and internal cylindrical grinding capability
• Servo-driven axes (no hydraulic unit)
• Swivelling table and swivelling work spindle
• Comprehensive standard accessory package

Machine bed

• Heavy machine bed designed for high-precision machining of large and heavy workpieces
• Swivelling table on precision-ground wide V-block guides for excellent vibration damping
• Design distributes table and workpiece weight to minimize tilting moments and increase rigidity
• Robust tailstock for accurate clamping between centers

Feed

• Servo-conventional feed technology for smooth, vibration-free table advance
• Premium servo drives deliver precision and dynamics comparable to modern CNC machines
• Precise, repeatable feed settings with electronic stops
• Preloaded ball screws on all axes reduce friction and breakaway torque
• Lower heat generation for stable conditions in continuous operation
• Drives, spindles and measuring systems enclosed for low maintenance

Grinding headstock

• Headstock on premium linear guides for maximum positioning accuracy
• Extensively supported grinding spindle for high precision and surface quality in roughing and finishing
• Internal grinding unit pivots into the work area and is driven by a separate motor

Work spindle drive

• Work spindle headstock swivels; spindle speed infinitely variable
• Standard 3-jaw chuck Ø 200 mm with high concentricity included

Equipment & maintenance features

• Fully enclosed work area with large doors for easy access and loading
• Centralized controls and all technical parameters on a touchscreen HMI
• LED lighting for visibility and safety
• Automatic centralized lubrication system
• Mobile electronic handwheel for simplified setup
• Steady rest included; coolant system, dresser, wheel balancer and tooling included in standard package

NC control

• NC positioning control combines roughing, finishing and spark-out in one operation
• Individual grinding cycles programmable via touchscreen without programming knowledge
• User-friendly HMI with menus for longitudinal and traverse cylindrical grinding
• Detailed graphics assist data entry and display machining status

Technical specifications

• Model: Servogrind® RSM 600 NC
• Center height: 180 mm
• Grinding diameter: 8 mm - 320 mm
• With steady rest (grinding diameter): 15 mm - 150 mm
• Grinding length: 600 mm
• Inside grinding diameter (with rest): 35 mm - 100 mm
• Inside grinding diameter (without rest): 30 mm - 100 mm
• Inside grinding depth: 125 mm
• Max workpiece weight between centers: 100 kg
• Table swivel range: -2° / +9°
• Wheel peripheral speed: 45 m/s
• Grinding head travel: 195 mm
• Working headstock swivel range: 90°
• Working spindle taper: 4 MT
• Chuck diameter: 200 mm
• Work spindle speeds: 25 1/min - 500 1/min
• Grinding spindle speed: 2,140 1/min
• Grinding headstock swivel range (r+l): 10°
• Inside grinding spindle speed: 10,000 1/min
• Tailstock taper: 4 MT
• Tailstock quill stroke: 30 mm
• Grinding spindle motor: 4 kW
• Inside grinding motor: 1.1 kW
• Headstock / coolant pump motor: 0.75 / 0.13 kW
• Grinding wheel dimensions: 400 mm x 50 mm x 203 mm
• Inside grinding wheel (max.): 40 mm x 25 mm x 13 mm
• Overall dimensions (L x W x H): 3.03 m x 2.3 m x 2 m
• Weight: 2,800 kg
