Overview

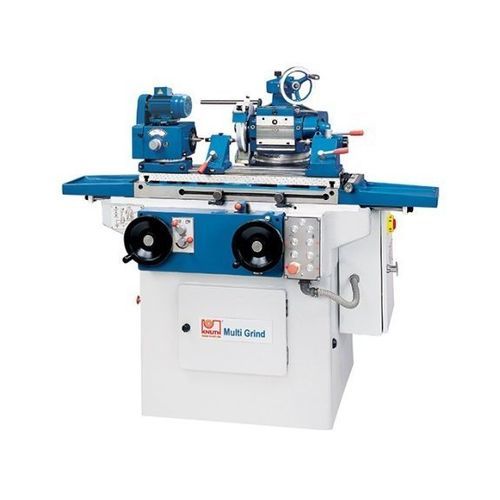

The Multi-Grind combines external and internal cylindrical grinding, surface grinding and tool grinding in a single industrial machine. It supports one-sided clamping or between-centers support, accepts an internal grinding unit on the headstock and performs light surface grinding and tool sharpening for cutters, reamers and turning tools.

Highlights

• External and internal cylindrical grinding
• Surface (flat) grinding
• Tool grinding / sharpening
• Hydraulic table feed with manual hydraulic assist
• Simultaneous mounting of two grinding wheels; wide accessory range

Working area
Grinding diameter: 200 mm
Max. workpiece length: 500 mm
Outside grinding optimal: Ø 5–50 x 400 mm
Inside grinding optimal: Ø 10–50 x 75 mm
Tool grinding area: 200 mm x 500 mm
Surface grinding (L x W): 200 mm x 50 mm
Max. workpiece weight: 10 kg
Table swivel range: +45° / -30°

Travels
Z-axis travel: 480 mm

Feed
Feed per hand-wheel rev X (fine): 1 mm
Feed per hand-wheel rev X (rough): 4 mm
Scale division X (fine): 0.005 mm
Scale division X (rough): 0.02 mm
Height adjustment scale division: 0.01 mm
Longitudinal feed speed (hydraulic): 0.1 m/min – 6 m/min
Manual with hydraulic assist: up to 7 m/min

Headstock
Headstock swivel range: ± 90°
Work spindle speeds: 110 – 300 min-1 (3 gears)
Spindle taper: 2 MT
Chuck diameter: 100 mm

Grinding headstock
Grinding spindle speed: 2,500 min-1
Internal grinding spindle speed: 13,500 min-1
Grinding headstock swivel range: ± 90°
Vertical / transverse travel: 200 mm

Tailstock
Height adjustment per handwheel rev: 2 mm
Tailstock taper: 2 MT
Tailstock quill stroke: 14 mm

Drive capacity
Total drive capacity: 2.525 kW
Main drive motor: 1.1 kW

Measures and weights
Grinding wheel dimensions: 200 x 20 x 75 mm
Internal grinding wheel min / max: 10 x 10 x 3 mm / 25 x 20 x 6 mm
Overall dimensions (L x W x H): 1.52 m x 1.35 m x 1.4 m
Net weight: 1,300 kg

Product details
The Multi-Grind is designed for flexible shop-floor use where combined operations reduce setups. Key functional features include a three-point bearing on the grinding spindle to reduce thermal effects, hydraulic longitudinal table feed with automatic direction change, the possibility to mount two grinding wheels simultaneously, central lubrication and a rigid cast-iron bed to minimise vibrations.

• Three-point spindle bearing for thermal stability and consistent surface finish
• Hydraulic longitudinal feed with automatic reversal and manual hydraulic-assisted feed
• Grinding headstock with transverse/vertical travel and rotation for multi-angle setups
• Accessible electrical cabinet and extensive accessory options (coolant, extraction, chucks, internal grinding unit)

Technical specifications

• Grinding diameter: 200 mm
• Max. workpiece length: 500 mm
• Outside grinding: Ø 5–50 x 400 mm
• Inside grinding (optimal): Ø 10–50 x 75 mm
• Tool grinding area: 200 x 500 mm
• Max. workpiece weight: 10 kg
• Z travel: 480 mm
• Grinding spindle: 2,500 min-1; internal: 13,500 min-1
• Work spindle: 110 / 200 / 300 min-1
• Grinding wheel: 200 x 20 x 75 mm
• Machine dimensions: 1.52 x 1.35 x 1.4 m; weight: 1,300 kg
