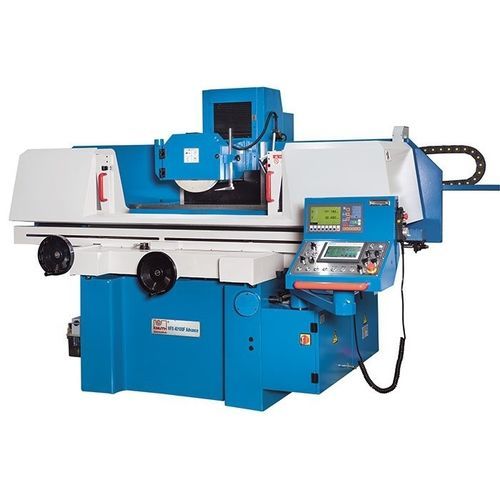

Surface grinding machine HFS 3063 F Advance

workpiecewith magnetic clampingconventional

Overview
The HFS 3063 F Advance is a conventional surface grinding machine designed as a production-ready solution. It combines a rigid cast‑iron frame, Siemens PLC with touchscreen and easy auto‑mode programming, and a large magnetic clamping plate for distortion‑free workholding. The machine is suited to shops requiring more functionality than basic conventional grinders without moving to full CNC systems.

Highlights

• Magnetic clamping plate with integrated degaussing
• Vertical axis with preloaded ball screw and servo motor for high positioning precision
• Siemens PLC control with touchscreen and simple auto‑mode programming
• Comprehensive standard equipment package (electronic handwheel, wheel dresser, balancing station, LED work lamp)

Product Details
Machine frame

• Cast‑iron frame for high rigidity and torsional strength
• Precision guideways with automatic central lubrication
• Workspace protected by easily accessible enclosure
• Coolant pump combined with vacuum exhaust for dust and aerosol control

Grinding spindle

• Large, dynamically balanced spindle, fully sealed with permanent lubrication
• Preloaded precision bearings for stable performance and long service intervals

Programming

• High‑quality preloaded ball screw and powerful servo on Y‑axis for repeatable positioning
• Electronic handwheel for setup and manual spindle movement
• Auto mode executes user‑defined roughing/finishing parameters, spark‑out strokes and return to zero

Hydraulics

• Quiet, low‑heat hydraulic system for continuous operation
• Hydraulically driven table movement, infinitely variable with soft reversal
• External hydraulic unit with oil cooler for temperature stability

Magnetic clamping plate

• Large magnetic chuck for torsion‑free clamping (standard)
• Control unit integrated into electrical system for quick clamping and degaussing

Working area
Workpiece weight (max.): 270 kg
Spindle nose to table surface: 580 mm
Table dimensions: 635 mm x 305 mm
Magnetic plate dimensions: 600 mm x 300 mm
Scale ring division Y‑axis: 0.005 mm
Scale ring division Z‑axis: 0.02 mm
Autom. transverse feed Z‑axis: 0.1 mm - 8 mm
Speed (spindle): 1,450 1/min
Autom. vertical feed: 0.005 mm - 0.05 mm

Travels
Travel X‑axis: 765 mm
Travel Y‑axis: 340 mm

Feed
Hydr. feed X‑axis: 7 m/min - 23 m/min
Rapid feed Y‑axis: 480 mm/min
Rapid feed Z‑axis: 990 mm/min

Drive capacity
Motor rating main drive: 4 kW

Measures and weights
Grinding wheel dimensions: 350 mm x 40 mm x 127 mm
Overall dimensions (L x W x H): 2.9 m x 2.2 m x 1.9 m
Weight: 2800 kg

Technical specifications

• Model: HFS 3063 F Advance
• Series: HFS F Advance
• Magnetic clamping plate with degaussing
• Siemens PLC control with touchscreen and auto‑mode programming
• Vertical axis with ball screw and servo motor
• Hydraulically driven table with external hydraulic unit and oil cooler
• Automatic central lubrication
• Workspace enclosure and coolant suction device for dust/aerosol removal
• Included accessories: electronic handwheel, grinding wheel dresser, balancing station/shaft, LED work lamp, operator manual
