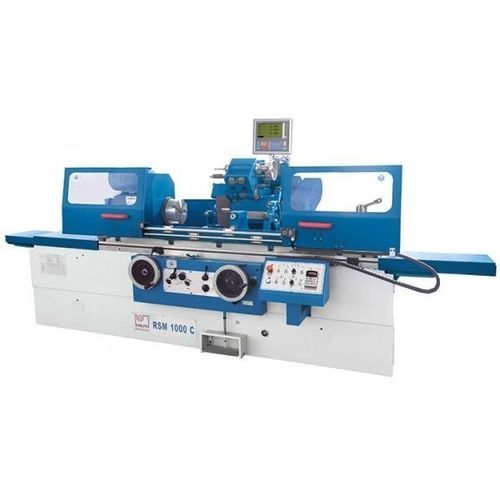

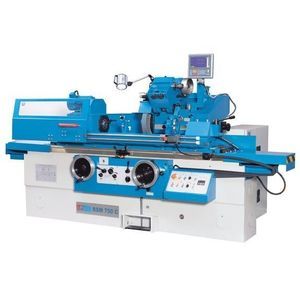

Cylindrical grinding machine RSM 1000 C

external cylindricalinternal cylindricalfor large workpieces

Overview
The RSM C series are precision cylindrical grinding machines engineered for long and heavy workpieces. Suitable for single-part machining and small-series production, the machines include an internal grinding device and a classic robust design with a large machine bed, precision-ground guideways and powerful drives for work spindle, grinding spindle and hydraulic unit.

Highlights

• External and internal cylindrical grinding
• Hydrostatic spindle bearings for high surface quality
• Heavy machine frame for large and heavy workpieces
• Swiveling headstock for conical grinding of short parts
• Integrated rapid feed on X-axis with manual return
• Comprehensive package of standard accessories

Product details

• Large heavy-duty machine bed accommodates workpieces up to 2,000 mm in some configurations and diameters up to 320 mm
• Wide precision-ground guideways ensure accuracy along the full workpiece length and support high weights
• Table with large dimensions swivels in two directions; movement via hand-wheel or automatic linear hydraulic feed
• Robust feed valve enables very precise micro-feed control on Z axis with operator-adjustable dwell at end of table travel
• Automatic feed in two steps, limited by an adjustable stop
• Grinding spindle with hydrostatic bearings for maximum precision, surface quality and extended tool life
• Grinding spindle motor designed for continuous operation
• Heavy-duty grinding head swivels ±30°; work spindle head swivels up to 45°
• Internal grinding unit included
• Integrated rapid feed on X axis with manual return

Standard equipment

• 3-axis position indicator X.Pos 3.2 (new generation with integrated turning functions)
• Internal grinding equipment
• Open steady rest
• Closed steady rest
• 3-jaw chuck Ø 200 mm
• Coolant system
• Grinding wheel dresser
• Balancing station
• Balancing mandrel
• Grinding wheel flange
• Center point
• Front and rear splatter guard
• Drivers
• Operating tools
• Operator manual
• Test certificate

Technical specifications

• Brand: KNUTH
• Working area — Center height: 180 mm
• Working area — Grinding diameter: 8 mm - 320 mm
• Working area — With steady rest: 60 mm
• Working area — Grinding length: 1.000 mm
• Working area — Inside grinding diameter with rest: 35 mm - 100 mm
• Working area — Inside grinding diameter without rest: 30 mm - 100 mm
• Working area — Inside grinding depth: 125 mm
• Working area — Workpiece weight between centers (max.): 150 kg
• Working area — Grinding wheel feed (min.): 0,0025 mm
• Working area — Chuck diameter: 200 mm
• Working area — Table swivel range (max.): -3° / +7°
• Working area — Wheel peripheral speed: 35 m/s
• Working area — Work spindle speeds: 50 Hz: 25-220 1/min
• Travels — Grinding head travel: 250 mm
• Feed — Table feed, infinitely variable: 0,1 m/min - 4 m/min
• Feed — Feed per hand-wheel rotation X-axis: 2 mm
• Feed — Feed per scale division X-axis: 0,0025 mm
• Headstock — Working headstock swivel range: 0° - 45°
• Headstock — Working spindle taper: 4 MT
• Grinding headstock — Grinding spindle speed: 1.670 1/min
• Grinding headstock — Grinding headstock swivel range (r+l): 30°
• Grinding headstock — Inside grinding spindle speed: 10.000 1/min
• Tailstock — Tailstock taper: 4 MT
• Tailstock — Tailstock quill stroke: 25 mm
• Drive capacity — Motor rating - grinding spindle / hydraulic pump: 5,5 / 0,75 kW
• Drive capacity — Motor rating inside grinding: 1,1 kW
• Drive capacity — Motor rating - headstock / coolant pump: 1,5 / 0,125 kW
• Measures and weights — Grinding wheel dimensions: 400 mm x 50 mm x 203 mm
• Measures and weights — Grindstone dimensions, inside grinding (max.): 50 mm x 40 mm x 16 mm
• Measures and weights — Grindstone dimensions, inside grinding (min.): 45 mm x 35 mm x 10 mm
• Measures and weights — Overall dimensions (L x W x H): 3,61 m x 1,81 m x 1,52 m
• Measures and weights — Weight: 3.700 kg
