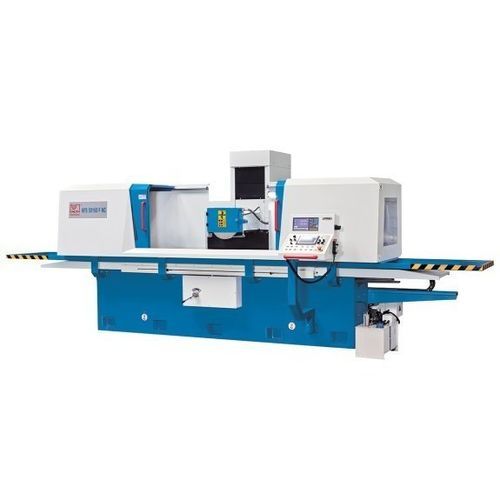

Surface grinding machine HFS 60160 F NC

for large workpieceswith magnetic clampingNC

Description
This series of surface grinders machines large and heavy workpieces to tolerances required for precision surface grinding or for preparatory steps such as lapping or polishing. The machine uses a cross-bed design with a moving column to provide a long table guidance and optimal distribution of weight force. The unit can be operated automatically or manually, extending its use to sample production, repair and training.

Highlights

• Moving-column (cross-bed) design for maximum stability
• Magnetic clamping plate with integrated demagnetizing function
• Siemens Smart Line PLC control with editable grinding cycles
• NC-controlled Y/Z axes driven by servo motors
• User-friendly HMI with touchscreen
• Electronic handwheel for Y/Z axes

Working area
Table dimensions: 600 mm x 1600 mm
Spindle center-to-table distance: 600 mm
Table load capacity (max.): 1300 kg
Magnetic chuck height: 110 mm
Magnetic clamping plate dimensions: 600 mm x 800 mm (2 positions)

Travels
Travel X-axis: 1600 mm
Travel Y-axis: 630 mm

Feed
Hydraulic feed X-axis: 5 m/min - 25 m/min
Feed Y-axis: 50 mm/min - 500 mm/min
Feed depth, Y-axis: 0.005 mm - 0.05 mm
Feed Z-axis: 50 mm/min - 1500 mm/min
Automatic Z-axis feed: 0 mm/min - 30 mm/min

Grinding wheel
Grinding wheel dimensions: 350 mm x 40 mm x 127 mm
Speed: 1450 1/min

Drive capacity
Main drive motor: 7.5 kW
Hydraulic motor: 5.5 kW
Y-axis servo motor: 2 kW
Z-axis servo motor: 0.5 kW

Measures and weights
Overall dimensions (L x W x H): 5.5 m x 2.75 m x 2.7 m
Weight: 7000 kg

Product details
Machine frame and general design

• Massive, heavily ribbed cross-bed frame with traversing column and horizontal spindle for high rigidity under heavy loads
• Large working area enables single large workpieces or several parts in one setup
• High-performance coolant system included as standard

Control

• Grinding cycles for automatic face and groove grinding accessible and editable via touchscreen
• Preloaded ball screws and powerful servomotors on Y and X ensure high precision and repeatability
• Electronic handwheel for Y and Z axes simplifies setup and manual positioning
• In Auto mode, user-defined roughing and finishing parameters, number of spark-out strokes and return-to-zero are processed automatically

Grinding spindle

• Large, dynamically balanced spindle, fully sealed with permanent lubrication
• Preloaded precision bearings for sustained performance and reliability

Hydraulics

• Quiet operation with minimal heat build-up for continuous use
• Hydraulic longitudinal table feed infinitely variable, maintaining constant speed and smooth direction reversals
• External hydraulic unit with oil cooler ensures temperature stability

Magnetic clamping plate

• Large magnetic chucks for torsion-free clamping across the work surface supplied as standard
• Modern control ensures reliable holding forces and high-quality demagnetizing

Technical specifications

• Model: HFS 60160 F NC
• Brand: KNUTH
• Table dimensions: 600 mm x 1600 mm
• Spindle center-to-table distance: 600 mm
• Table load capacity (max.): 1300 kg
• Magnetic chuck height: 110 mm
• Magnetic clamping plate: 600 mm x 800 mm (2 positions)
• Travel X-axis: 1600 mm
• Travel Y-axis: 630 mm
• Hydraulic feed X-axis: 5 - 25 m/min
• Feed Y-axis: 50 - 500 mm/min
• Feed depth Y-axis: 0.005 - 0.05 mm
• Feed Z-axis: 50 - 1500 mm/min
• Automatic Z-axis feed: 0 - 30 mm/min
• Grinding wheel: 350 x 40 x 127 mm, 1450 1/min
• Main drive motor: 7.5 kW; Hydraulic motor: 5.5 kW
• Y-axis servo motor: 2 kW; Z-axis servo motor: 0.5 kW
• Overall dimensions (L x W x H): 5.5 m x 2.75 m x 2.7 m
• Weight: 7000 kg
• Control: Siemens Smart Line PLC with touchscreen HMI; grinding cycles editable; NC-controlled Y/Z axes
