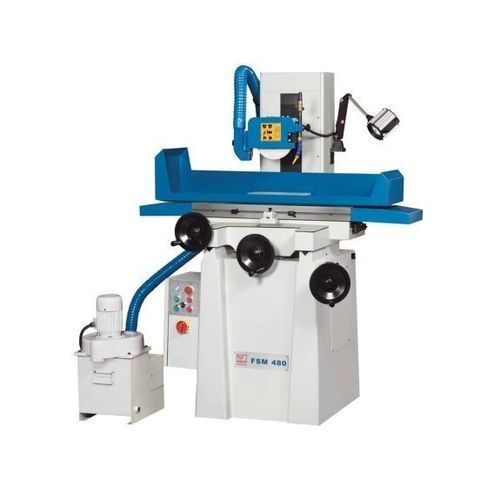

Surface grinding machine FSM 480

for workpieceswith magnetic clampingconventional

Overview
This manual conventional surface grinder FSM 480 is designed for short, simple and accurate grinding tasks at competitive cost. Suited to repair and training workshops, the cross-table construction ensures stable geometry. Table guidance is smooth; a permanent magnetic chuck and dust extraction are included as standard.

Highlights

• Cast-iron machine base for vibration absorption
• Permanent magnetic chuck 125 x 300 mm
• Comprehensive standard equipment
• Angle-adjustable grinding vise

Working area (table)
Table dimensions: 210 mm x 450 mm
Spindle axis to table surface distance: 450 mm

Travels
Travel X-axis: 480 mm
Travel Y-axis: 230 mm
Travel per hand-wheel rotation, X-axis: 5 mm
Travel per hand-wheel rotation, Y-axis: 5 mm
Travel per hand-wheel rotation, Z-axis: 1 mm

Feed / Scales
Scale ring division X-axis: 0.02 mm
Scale ring division Y-axis: 0.02 mm
Scale ring division Z-axis: 0.005 mm

Accuracies
Surface roughness achievable: ≤ 0.63 µm Ra
Grinding parallelism: 0.005 mm / 300 mm

Drive capacity
Motor rating (main drive): 1.5 kW

Measures and weights
Grinding wheel dimensions: 200 x 13 x 32 mm
Machine weight: 730 kg

Product details

• High-load spindle mounted in preloaded angular deep-groove ball bearings for low vibration, high accuracy and long life
• Sealed, balanced spindle motor with high load capacity
• Solid, vibration-absorbing cross-table construction
• V- and flat guides in X and Y for consistent accuracy
• Longitudinal table movement on linear ball guide and linear roller guideway
• Adjustable handwheel scales for vertical and transverse zeroing at any position
• Centralized lubrication

Standard equipment

• Exhaust vacuum (dust extraction)
• Work lamp
• Permanent magnetic chuck 125 x 300 mm
• Balancing shaft and balancing station
• Angle-adjustable grinding vise
• Operating tools and operator manual
• Grinding wheel flange, dresser and grinding wheel

Optional equipment

• Coolant device (model for FSM 480 available)

Technical specifications

• Model: FSM 480
• Working table: 210 x 450 mm
• Spindle distance to table surface: 450 mm
• X travel: 480 mm
• Y travel: 230 mm
• Z travel per hand-wheel rotation: 1 mm (Z scale division 0.005 mm)
• Scale divisions: X/Y 0.02 mm, Z 0.005 mm
• Motor rating (main drive): 1.5 kW
• Grinding wheel: 200 x 13 x 32 mm
• Surface roughness achievable: ≤ 0.63 µm Ra
• Machine weight: 730 kg
