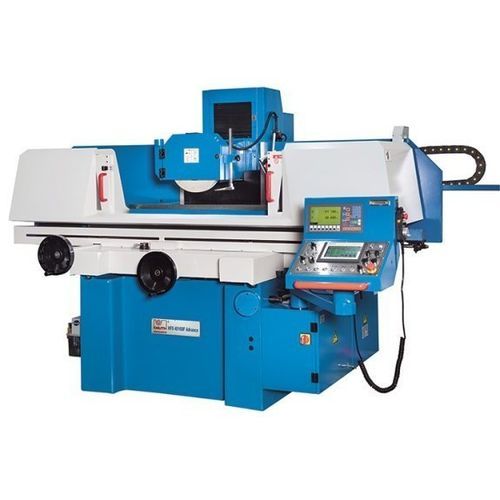

Surface grinding machine HFS 4080 F Advance

workpiecewith magnetic clampingconventional

Overview
The HFS F Advance series by KNUTH is a conventional surface grinder range combining a cast-iron machine frame with Siemens-based controls to deliver automated operating functions without full CNC complexity. Intended for workshops that require advanced conventional grinding capabilities.

Key features

• Magnetic clamping plate with integrated demagnetizing function
• Vertical axis with ballscrew and servo motor for precise positioning
• Siemens PLC with touchscreen and easy auto-mode programming
• Comprehensive standard equipment (magnetic chuck, automatic central lubrication, coolant and suction system, wheel dresser, balancing tools, LED lamp, operator manual)

Product details

• Machine frame: Cast-iron construction providing rigidity and torsional stiffness
• Lubrication: Central automatic lubrication for all guideways
• Workspace protection: Easily accessible enclosure to contain coolant and grinding debris
• Cooling and extraction: Powerful coolant pump combined with vacuum exhaust to remove grinding dust and aerosol
• Grinding spindle: Large, dynamically balanced, fully sealed spindle with permanent lubrication and preloaded precision bearings
• Programming: Preloaded ball screw and servo on Y-axis; electronic handwheel for manual setup; auto mode processes roughing/finishing parameters, spark-out strokes and return-to-zero
• Hydraulics: Hydraulically driven longitudinal table movement with soft reversal; external hydraulic unit with oil cooler for temperature stability
• Magnetic clamping plate: Large fine-pole magnetic chuck with integrated control for fast clamping and degaussing

Technical specifications (summary)

• Workpiece max weight: 500 kg
• Table dimensions: 813 mm x 406 mm
• Spindle nose-to-table distance: 580 mm
• Magnetic chuck dimensions: 800 mm x 400 mm
• Scale ring division Y-axis: 0.005 mm
• Scale ring division Z-axis: 0.02 mm
• Autom. transverse feed Z-axis: 0.1 mm - 8 mm
• Grinding spindle speed: 1,450 1/min
• Autom. vertical feed: 0.005 mm - 0.05 mm
• Travel X-axis: 910 mm
• Travel Y-axis: 450 mm
• Hydraulic feed X-axis: 7 - 23 m/min
• Rapid feed Y-axis: 480 mm/min
• Rapid feed Z-axis: 990 mm/min
• Main drive power: 4 kW
• Grinding wheel dimensions: 350 x 40 x 127 mm
• Overall dimensions (L x W x H): 3.6 m x 2.4 m x 1.9 m
• Machine weight: 3,400 kg

Standard equipment highlights

• Magnetic clamping plate (with degaussing)
• Automatic central lubrication
• Workspace enclosure / protection
• Coolant and suction device
• Grinding wheel dresser and balancing station/shaft
• LED work lamp
• Siemens PLC control with touchscreen (auto-mode)
• Operator manual and service tools

Remarks
Machine supplied with comprehensive base equipment; optional accessories are available to adapt the machine to specific production requirements.
