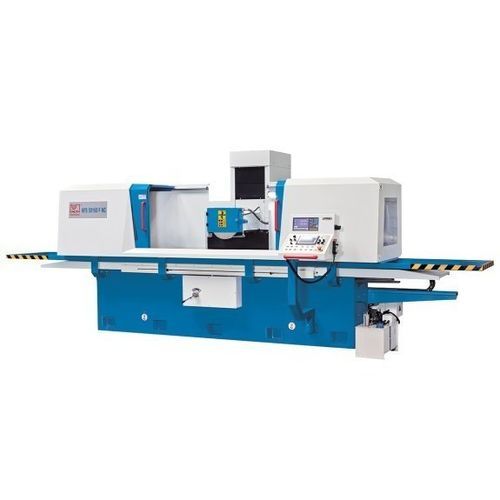

Surface grinding machine HFS 50100 F NC

for large workpieceswith magnetic clampingtravelling column

Overview
The HFS 50100 F NC is a cross‑bed surface grinder engineered for large, heavy workpieces that require precision flat grinding or preparatory lapping and polishing. The movable-column design provides extended table guidance and optimal load distribution. Switchable automatic/manual modes support sample production, repair work and operator training.

Highlights

• Movable-column cross-bed design for maximum stability
• Large magnetic chuck with integrated demagnetizing function
• Siemens Smart Line PLC with grinding cycles and touchscreen HMI
• NC-controlled Y/Z axes driven by servo motors
• Hydraulic continuously variable X-axis table feed
• Electronic handwheel for precise Y/Z manual positioning

Product details

• Ribbed cross-bed frame and horizontal spindle ensure rigidity under heavy loads
• Large work area for single large parts or multiple parts in one setup
• High-performance coolant system and external hydraulic unit with oil cooler included

Working area
Table dimensions: 500 mm x 1.000 mm
Spindle center-to-table distance: 600 mm
Max table load: 700 kg
Magnetic chuck height: 110 mm
Magnetic chuck dimensions: 500 mm x 1.000 mm
Number of magnetic chucks: 1

Travels
X-axis travel: 1.000 mm
Y-axis travel: 500 mm

Feed
Hydraulic X-axis feed: 5 m/min - 25 m/min
Y-axis feed: 50 mm/min - 500 mm/min
Y-axis feed depth: 0.005 mm - 0.05 mm
Z-axis feed: 50 mm/min - 1.500 mm/min
Automatic Z-axis feed: 0 mm/min - 30 mm/min

Grinding wheel
Wheel dimensions: 350 mm x 40 mm x 127 mm
Speed: 1.450 1/min

Drive capacity
Main drive motor: 7.5 kW
Hydraulic motor: 3 kW
Y-axis servo motor: 2 kW
Z-axis servo motor: 0.5 kW

Dimensions and weight
Overall dimensions (L x W x H): 4.5 m x 2.65 m x 2.7 m
Weight: 5.500 kg

Control

• Siemens touchscreen: editable grinding cycles for face and groove grinding
• Preloaded ball screws and powerful servos ensure precision and repeatability
• Automatic mode processes user-defined roughing/finishing parameters and spark-out strokes

Grinding spindle

• Dynamically balanced, fully sealed spindle with lifetime lubrication
• Preloaded precision bearings for sustained performance

Hydraulics

• Quiet operation and low heat build-up for continuous use
• Infinitely variable hydraulic table feed with smooth direction reversals
• External hydraulic unit with oil cooler for temperature stability

Magnetic clamping plate

• Large magnetic chuck for distortion-free clamping across the work surface included as standard
• Modern control ensures reliable holding forces and effective demagnetization

Standard equipment (selection)

• 2-axis position indicator X.Pos 3.2
• Electronic handwheel for Y/Z axes
• Grinding wheel flange
• Workspace enclosure
• Coolant system
• Diamond dresser stand (without diamond)
• Balancing station and shaft
• LED work lamp
• Magnetic clamping plate
• Adjustment screws and tools
• Operator manual
• Siemens PLC with touchscreen
• Automatic central lubrication

Optional equipment (selection)

• Coolant system with magnetic separator and paper filter
• Magnetic separator without reservoir
• Fine-pole magnetic chuck or upgrade for HFS 50100 F NC
• Servo grinding stone dresser

Technical specifications

• Model: HFS 50100 F NC
• Table: 500 x 1.000 mm
• Spindle center-to-table: 600 mm
• Max table load: 700 kg
• Travel X/Y: 1.000 mm / 500 mm
• Feeds X/Y/Z and speeds as listed above
• Grinding wheel: 350 x 40 x 127 mm, 1.450 1/min
• Main motor 7.5 kW; hydraulic 3 kW; servos Y/Z 2 kW / 0.5 kW
• Overall dimensions: 4.5 x 2.65 x 2.7 m; weight: 5.500 kg
