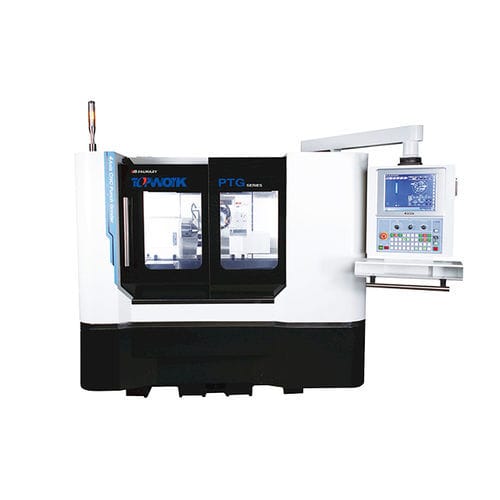

Punch grinding machine PTG-32

for metal sheetsfor workpieceshorizontal

Equipped with a Delta OPEN CNC controller and Topwork-developed HMI, PunchSmart software delivers intuitive operation and versatile punch grinding solutions. 7 Built-in punch modules – easy to set up and customize Auto path generation & simulation – precise, collision-free grinding One-cycle grinding & in-process dressing with auto compensation for high efficiency and accuracy The spindle adopts 5 precision angular contact ball bearings. The horsepower is upgraded to 5HP. The center of mass of the spindle is right at the center of the Z axis ,which provides you the stability. Wheel spindle The spindle adopts 5 precision angular contact ball bearings. The horsepower is upgraded to 5HP. The center of mass of the spindle is right at the center of the Z axis ,which provides you the stability. V-shaped supporter When the punch is grinded, the supporter is used to improve the grinding stability. The V-shaped supporter with bilateral adjustment can reduce the calibration time. Workhead The MT4 taper of the working head adopts direct drive to improve the indexing accuracy. It is equipped with a six-jaw chuck, the range is from diameter 3 to 32 mm, that can freely match different diameter of the workpieces. Standard dressing device The standard dressing device is coned diamond dresser or you can upgrade to diamond disk dressing device to dress the grinding wheel in process which can ensure the grinding accuracy of punches and improve the grinding efficiency.
