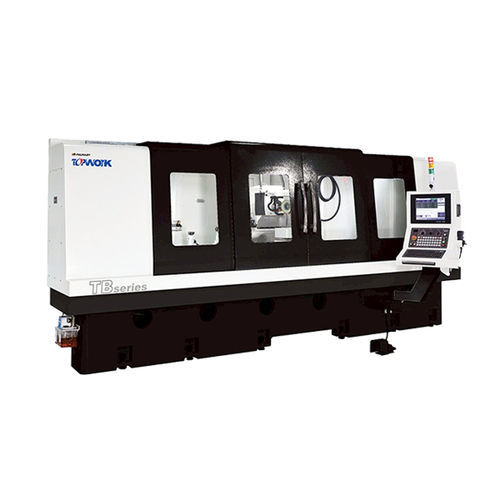

Broach sharpening machine TB series

column typehorizontalCNC

The TB-Series delivers advanced 4-, 5-, and 6-axis grinding solutions with full servo control, ensuring superior precision and adaptability. Designed to handle broaches up to 2000 mm long and diameters from 20 mm to 125 mm, it supports a wide range of applications. From flat and round to complex helical broaches, resharpening tasks are performed with exceptional accuracy. Specifications Z Axis - 200 mm / 188 mm A Axis - 360˚ B Axis - 0˚ ~ - 90 ˚ C Axis - ±30° Distance between center and table - 190 mm Distance between centers - 1500 mm / 2000 mm Tailstock Taper - MT5 Tool Data Min. diameter - Ø 20 mm Max. diameter - Ø150 mm Max. work-piece weight - 150 kg Grinding spindle Grinding wheel diameter - Ø50~ Ø150 Controller Type - MITSUBISHI / FANUC Type - MITSUBISHI / FANUC Machine L x W x H - 5000 (6000) x 2043 x 1950 mm
