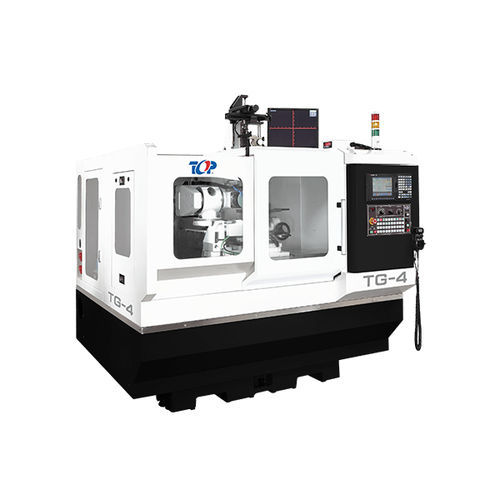

CNC sharpening machine T series

for shaper cutterautomaticprecision

TM/TG-S Shaper cutter Resharpening machine Equipped with a camera system for precise tooth alignment, especially effective for small-module tools. Suitable for resharpening: skiving cutters, helical shaper cutters, spur gear shaper cutters, spiral gear cutters TM/TG-H Hob cutter resharpening machine Designed with three linear axes and one rotary axis, ideal for resharpening straight-flute hob cutters. Integrated HMI with graphical interface for easy angle and parameter setup Automatically generated NC grinding path for efficient operation Delivers AA-grade accuracy, ensuring precision resharpening Specifications Z Axis - 200 mm C Axis - ∞ A Axis - -15˚ ~ 45˚ B Axis - -5º ~ 5º Rapid traverse X - 6 m/min Rapid traverse Y - 6 m/min Rapid traverse Z - 6 m/min Rapid traverse C - 50 rpm Rapid traverse A - Manual Rapid traverse B - Manual Linear resolution - 0.001 mm Radial resolution - 0.001 Axes Motor X Axis - 1 kw Y Axis - 1 kw Z Axis - 1 kw C Axis - 0.4 kw A Axis - N/A B Axis - N/A Tool date Min. diameter - 15 mm Max. turning diameter - 140 mm Max. work-piece length - 180 mm Grinding spindle Max. grinding wheel diameter - 150 mm Fixture Taper - MT2 / MT3 / MT4 Cooling System Cooling motor - 1/8 HP Control Model - MITSUBISHI Machine L x W x H - 2080 x 1870 x 2230 mm Standard Accessories Full splash guard Halogen Lamp Automatic Lubrication System Grinding wheel flange Leveling bolt / block Tool box / Adjust tool Angle adjustment Wheel Dresser Paper Filter Coolant System C.C.D Camera System Spare belt Option Accessories Oil mist collector
