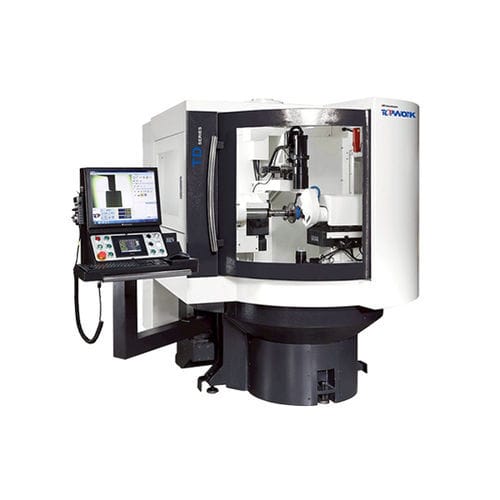

Diamond wheel dresser TD series

CNC

TD Series is equipped with a camera system for real-time monitoring of the dressing process, giving users clear visual feedback on dressing status. Supports various customer-specified spindles with optional adapters. Capable of flat, radius, end-face, and even multi-radius dressing. Delivers precise wheel for optimal performance on other grinders. Specifications Spindle type - BT-40 Max. diameter - Ø 250 mm Min.diameter - Ø 50 mm Cross drive - Manual - Servo Longitudinal drive - Manual - Servo Cross travel - 280 mm Longitudinal travel - 140 mm Truing /Dressing wheel Dimensions - Ø180 mm Longitudinal drive - Servo Longitudinal travel - 100 mm Oscillation drive - Servo Oscillation stroke - -40~+40mm - 0~-80mm Swivelling drive - Servo Swivelling travel - ±95º Controller Type - PLC - MITSUBISHI Machine L x W x H - 2300 x 2100x 1820 mm - 1660 x 2340 x 2050 mm Standard Accessories Half splash guard (manual) Work Lamp Optical linear scales with digital display counter (Resolution: TD-3= 0.005mm, TD-5= 0.001mm ) Leveling Bolts and Blocks Spare Belt for Spindle Drive Dressing Wheel Flange. ( Metric: 32 mm .or Imperial:31.75 mm ) Tool Box / Adjusting Tool Cooling spray system C.C.D Camera System with Magnification 5x~50x Monitor Dust collection system Wheel Dresser Optional Half splash guard (Auto) Full splash guard Customer specified Adapter and shank Software
