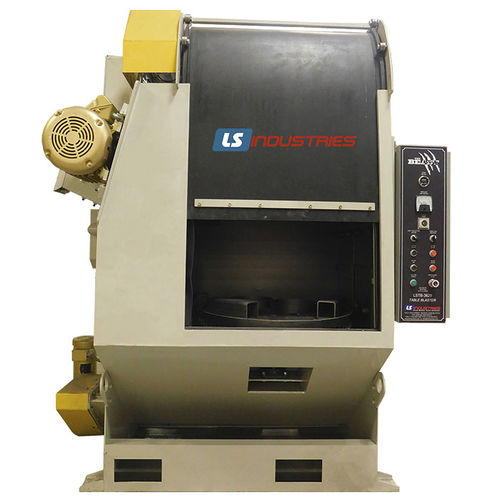

Manual shot blasting machine LS TB 3629

for bulk materials

Versatile, reliable parts cleaning with a super-efficient blast system that’s built to last. The blast cabinet is constructed from manganese steel with replaceable manganese wear liners and neoprene rubber on the remaining cabinet and door. The roll-up door is electrically powered and uses reinforced rubber to seal the blast chamber and prevent dust leakage. The unit has the LS SureShotTM Wheel in which an impeller wheel propels the abrasive at a rate of 3600 RPM. The wheel assembly is contained within a wheel housing that is lined with cast chrome replaceable alloy wear plates. The blades are bi-directional. A control cage focuses shot direction. Features Side Air Wash Standard Parts Tree Optional Elevator Jam Sensor Optional Pneumatic Door Assist N/A VFD on Blast Wheels Optional Technical Specifications Work Envelope 36″D x 29″H Overall Dimensions 7’6″ x 5’6″ x 8’10” (with dust collector included)” No. of Blast Wheels (STD)* 1ea x 15HP Table Loading Height (STD) 36″ Total Weight Capacity 1,000lbs Dust Collector** DCC-1-A
