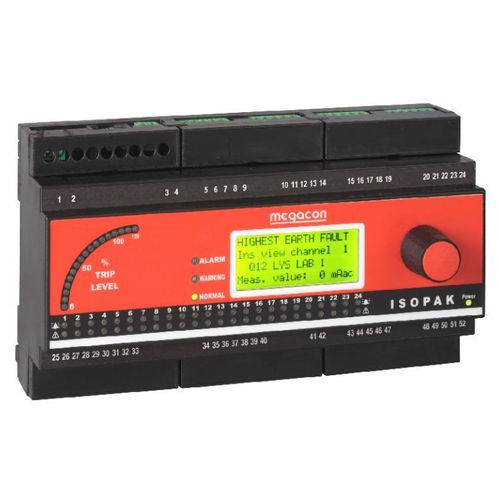

Digital earth fault protection relay
ISOPAK1xx series Meagacon AS

UNIVERSAL AC EARTH FAULT PROTECTION SYSTEM
24 channel earth leakage monitoring of LIVE AC networks
Tailored to any voltage or current range
Reads each channel's RMS leakage. Range 100mA to 10A
Set parameters and view on unit screen
Optional supervision module and slave unit
Healthy/Warning/Alarm and Supervision C/O relay outputs
"Highest up" 4-20mA signal & RS-485 Modbus RTU outputs
Description
The digitally controlled ISOPAK1xx adds to Megacon's wide range of ISOGUARD products for insulation and earth fault monitoring and protection.

The ISOPAK1xx technology is also used in Megacon's IsoMedical and IsoSubsea systems for monitoring of ultra-safe AC supply systems in hospital and subsea installations respectively.

ISOPAK1xx can be configured for operation in FLOATING and GROUNDED single phase, 3-wire and 4 wire three phase AC networks. The measuring range is factory pre-programmed.
