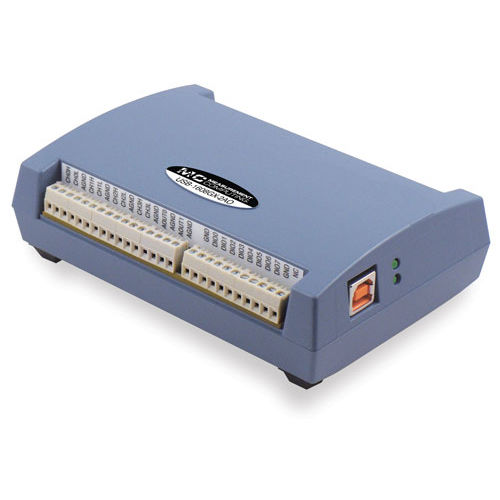

Power data acquisition module USB-1608G series

multi-channelbenchtopembedded

The USB-1608G Series of high-speed multifunction USB data acquisition (DAQ) devices are ideal for low to medium channel count applications, and provide analog along with digital and counter/timer functions. Up to two analog outputs are available. OEM versions are available for embedded applications. • 16-bit high-speed USB devices • Acquisition rates up to 500 kS/s • 8 differential (DIFF) or 16 singleended (SE) analog inputs • Up to 2 analog outputs • 8 digital I/O • Two 32-bit counter inputs • One timer output • OEM version availableSupported Operating Systems • Windows® 11/10/8/7/Vista®XP 32/64-bit • Linux® • Android™ Analog Input USB-1608G Series devices provide 16-bitanalog inputs that are software-selectableas eight DIFF or 16 SE inputs. These devicesalso support input ranges of ±10 V, ±5 V,±2 V, and ±1 V that are software-selectableper channel. Analog Output(USB-1608GX-2AO only) The USB-1608GX-2AO standard/OEMboard has two 16-bit analog outputs thatcan be updated at a rate of 250 kS/s perchannel; one output can be updated ata rate of 500 kS/s. The output range isfixed at ±10 V. Trigger Input USB-1608G Series devices have an external digital trigger input. The triggermode is software-selectable for edge- orlevel-sensitive mode. You can configureedge-sensitive mode for either rising orfalling edge. In level-sensitive mode, youcan configure for either high or low level.The default setting at power up is edgesensitive, rising edge.
