Multi-channel data acquisition module USB-1608FS series

benchtopembeddedsimultaneous sampling

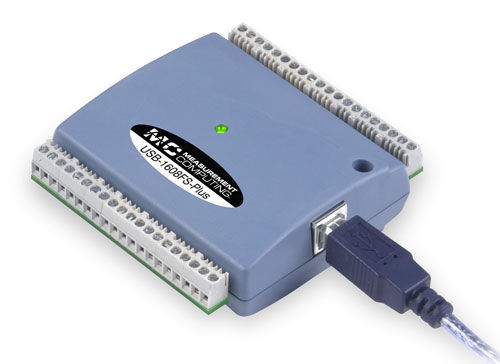

The USB-1608FS-Plus Series data acquisition (DAQ) devices provide simultaneous analog inputs along with digital I/O and counter measurements. Features include an A/D converter per channel, an external digital trigger input, and an external bidirectional clock. OEM version available for embedded applications. • Eight single-ended analoginputs • 16-bit resolution • Simultaneous sampling • 400 kS/s aggregate sample rate(100 kS/s max for any channel) • Eight high-current digital I/O • 32-bit event counter • External clock I/O • External digital trigger input • OEM version availableSupported Operating Systems • Windows® 11/10/8/7/Vista®/XP 32/64-bit• Linux® • Android™ Analog Input The USB-1608FS-Plus device has a dedicated A/D converter per analog channelfor simultaneous sampling. It offerssoftware-selectable analog input rangesfor ±10 V, ±5 V, ±2 V, and ±1 V. Simultaneous Sampling Each analog input channel has a dedicated16-bit A/D converter for true simultaneoussampling of all 8 inputs. Sample Rates With hardware paced mode, the maximum throughput rate is 100 kS/s forany one channel, up to about 400 kS/saggregate for multiple channels.Use burst scan mode to run any number ofchannels at the maximum rate of 100kS/sup to the full capacity of the 32K sampleFIFO. The maximum sampling rate is800 kS/s aggregate for all channels.
