Voltage data acquisition module S series

powermulti-channelbenchtop

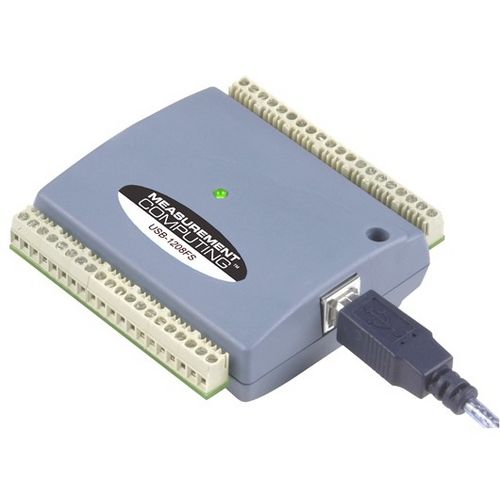

The USB-1208FS-Plus/LS/1408FS-Plus Series consists of low-cost analog and digitalI/O devices. All devices in this series offer four differential (DIFF) or eight singleended (SE) analog inputs, two analog outputs, 16 digital I/O and one event counter.The USB-1208LS offers sample rates up to 1.2 kS/s, while all USB-1208FS-Plus andUSB-1408FS-Plus devices (standard and OEM) offer sample rates up to 50 kS/s.All devices in this series also support multiple software-selectable voltage inputranges, making them ideally suited for a wide assortment of measurements. • Low-cost USB DAQ deviceswith 4 differential or 8 singleended analog inputs • Maximum sample rates rangingfrom 1.2 kS/s to 50 kS/s • 2 analog outputs • 16 digital I/O • One 32-bit counter inputchannel • No external power required • All devices available withenclosure and screw terminals • Board-only OEM versions of-Plus devices also availableSupported Operating Systems • Windows® 11/10/8/7/Vista®XP32/64-bit • Linux® • Android™ (-Plus devices only) The USB-1208LS and USB-1208FS-Plusprovide eight, 11-bit SE analog inputs orfour, 12-bit DIFF analog inputs.The USB-1408FS-Plus These devices provide eight, 13-bit SE analog inputs or four,14-bit DIFF analog inputs.All devices support software-selectableranges that provide inputs from ±1 V to±20 V in a DIFF configuration, and ±10 Vin a SE configuration.
