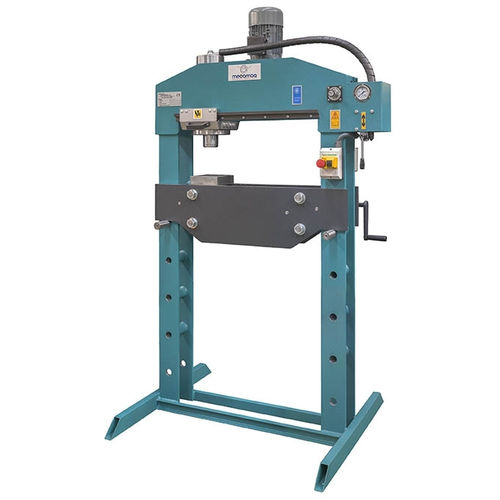

Electro-hydraulic press DE50 +punchingwith floating headstock
Add to favorites
Compare this product
Characteristics
- Operation
- electro-hydraulic
- Function
- punching
- Structure
- with floating headstock
- Force
50 tf
- Opening
136 mm, 163 mm, 200 mm, 800 mm, 1,000 mm
(5 in, 6 in, 8 in, 31 in, 39 in)- Stroke
250 mm
(10 in)- Working speed
420 mm/s
- Weight
480 kg
(1,058 lb)- Overall width
1,170 mm
(46 in)- Overall height
2,230 mm
(88 in)
Description
Optional equipment, pressure regulator.
Features
Power (tons) - 50
Hydraulic system speeds. - 1
Stroke (mm) - 250
Front opening useable (mm) - 800
Side opening useable (mm) - 136
Vertical opening useable (mm) - 200/1000
Side opening useable (mm) - 163
Engine power (HP) - 4
Pressing speed (mm/s) - 420
Height (mm.) - 2230
Width (mm.) - 1170
Depth (mm.) - 1000
Weight (Kg.) - 480
VIDEO
Catalogs
DE-50
1 Pages
