Joining presses

Force: 60, 100, 160, 200 tf

... for repair and assembly work truing of axles, supports, shafts and much more for removal and pressfitting bearings and bushings 2-step hydraulic unit supply voltage 3x400 V / 50 Hz Work cylinder with smooth horizontal ...

Force: 100, 150 tf

... suited for performing stress tests, welding sample testing, and material testing Repairs, assembly work, straightening of axes, beams, shafts as well as press-fitting or removing bearings and bushings ...

Force: 5 kN - 15 kN

Comprehensive stand-alone servo press is designed especially for cell production and research facilities, the result display, control mechanism, pressing mechanism, C-frame and pair of operation switches are all included ...

Opening: 65 mm - 260 mm
Force: 5 kN - 200 kN

The JP-S2 Series servo press from Janome efficiently press fits, swages, rivets, seals, cuts, punches, bends, crimps and more. Available in nine sizes from 5kN to 200kN, the slim type inline specialist ...

Opening: 66 mm - 220 mm
Force: 0.5 kN - 80 kN

... us directly. ＊1 Value at 5% or more of maximum pressing capacity under constant environmental conditions. ＊2 Value with the press unit at a constant temperature. ＊3 Please consult with us about compatible load cells. C ...

Force: 84 kN

... outstanding price-performance ratio. TOX®-C-Frame Press series CEC Max. capacity: - 84 kN The solid cast construction with large throat depth results in a highly versatile all-round press. The ...

Force: 50 kN - 80 kN

... price-performance ratio. TOX®-C-Frame Press series CEJ Max. capacity: - 50-80 kN Flexible modular system provides an universal upright press. Optimized for our TOX®-Robot Tongs drives and tool ...

Force: 8.5 kN - 57.5 kN

The press ram is moved forward over a toggle mechanism by pulling on the hand lever. Pressing the start button on the lever, after a limit switch is tripped, results in a 6 mm long pneumatic power stroke. Releasing the ...

Opening: 40 mm - 210 mm
Force: 5 kN

... white, red Advantages: - Height adjustment of press head by threaded spindle - High output power with moderate input force - Accuracy thanks to precise ram guidance - Accurately machined press ...

Opening: 50 mm - 260 mm
Force: 7.5 kN

... white, red Advantages: - - Height adjustment of press head by threaded spindle - - High output power with moderate input force - - Accuracy thanks to precise ram guidance - - Accurately machined press ...

Opening: 52 mm - 230 mm
Force: 12 kN

... white, red Advantages: - - Height adjustment of press head by threaded spindle - - High output power with moderate input force - - Accuracy thanks to precise ram guidance - - Accurately machined press ...

Opening: 400 mm - 1,600 mm
Force: 350 kN - 1,500 kN

For the assembly, adjustment, check and repair of moulds (for thermoplastics, die-casting, thermoset, rubber and cutting) with possibility of low - pressure injection into the moulds. Hydraulics controlled by electronic proportional servo ...

Opening: 500 mm - 1,900 mm
Force: 2,000 kN

For the assembly, adjustment, check and repair of moulds (for thermoplastics, die-casting, thermoset, rubber and cutting) with possibility of low - pressure injection into the moulds. Hydraulics controlled by electronic proportional servo ...

The smallest version of BV series. For assembly, adjustment, checking and repair of dies (for thermoplastics, die-casting, thermosetting, rubber and blanking) with the possibility of low pressure injection into the moulds. Very stable ...

... pressing operations. Precise and reliable measuring technology is the key to comprehensive quality assurance for assembly, joining and pressing processes. This approach makes the process independent of the respective ...

AGME Automated Assembly Solutions designs and manufactures high quality electric presses with AGME technology. These AGME PE electric presses are used to perform processes that need a constant results monitoring, more ...

The AGME PE-50 UC servo press is controlled by the automation of the machine in which it is installed. In the case of the PE-50 UCC servo press it is delivered with an AC quality assurance system, the ...

Opening: 65 mm - 180 mm
Force: 5 kN

... of the press depth via hardened lower stop Fully adjustable, play-free Teflon-lined gibs Applications : Assembling, riveting, bordering, crimping, embossing, numbering, deforming, stamping, cutting ...

Opening: 50 mm - 165 mm
Force: 2.5 kN

... of the press depth via hardened lower stop Fully adjustable, play-free Teflon-lined gibs Applications : Assembling, riveting, bordering, crimping, embossing, numbering, deforming, stamping, cutting ...

Opening: 105 mm - 1,020 mm
Force: 12 kN

... of the press depth via hardened lower stop Fully adjustable, play-free Teflon-lined gibs Applications : Assembling, riveting, bordering, crimping, embossing, numbering, deforming, stamping, cutting ...

Opening: 800 mm

Simple-acting cylinder presses manual Manual presses with a single speed pump. Simple-acting cylinder with spring recall and tensile approximation screw Solid structure in a monobloc format to ensure a greater rigidity of the machine ...

Opening: 300 mm
Force: 1,494.6 kN

Machine with two independent cylinders for make punching and clinch. First workstation with one double effect cylinder 150 Tons for punching. Second workstation with one double effect cylinder 100 Tons for clinch. Lower plate 800 x ...

Force: 20 kN

With reduced cycle times, lesser changeover times and time for setup, this bench top press performs exceedingly well, thanks to its programmable crimp height and convenient TopTouch User interface for the users. Optional ...

Force: 20 kN

The bt 712 bench top press is a precise semiautomatic crimping press that offers great functionality and big benefits to users. It offers great value for money. The semiautomatic bt 712 bench top model ...

Force: 20 kN

Bench top crimping press bt 752 is noted primarily for its features like ultra-quick changeover, setup and cycle times. It is possible to do active monitoring even when the press is set up. With minimal ...

Force: 147.2 kN

Our 15 ton workshop press can be operated by hand as well as by foot: the handpump is interchangeable to a foot pump. This small hydraulic shop press has a fixed cylinder and the height of the work table ...

Force: 294.3 kN

Our 30 ton H-frame press can be operated by hand as well as by foot: the handpump is interchangeable to a foot pump. This hydraulic workshop press has a movable cylinder and the height of the work table ...

Force: 490.5 kN

... ton manual workshop press from Profi Press is made in Europe. This hydraulic press is equipped with a movable cylinder and the height of the working table is easy to adjust by using a ...

Force: 10 kN - 200 kN

... designs with an optimum price/performance ratio. They are well suited for assembly and joining applications with force-distance monitoring and can be integrated in automated assembly ...

Force: 50, 25 kN

... mechanical assembly units of the Compact Series are characterised by their slim and weight reduced design. It is suitable for assembling operations using several presses of minimum dimensions. The servomotor is aligned ...

Force: 0.2 kN - 4 kN

... construction, the units can be integrated in automated assembly lines as well as in manual work-places. The mechanics comprise of the following components: •Steal housing •Ball gear drive •Axial bearing •Press ...

Opening: 6 in - 14 in

... -Power® cylinder is adapted from a highly-precised framework, in order to provide the users with a quality and compact air press for production or laboratory use. Additionally, this product is enhanced with power factors ...

Opening: 175, 125, 75 mm
Force: 3, 15, 36 kN

aiPRESS servo presses are used to produce safe and reproduceable joinings. They offer optimal possibilities in customising the joining process to your needs. Process factors such as feed force, running ...

Opening: 22 mm
Force: 1 kN

Adjustable power from 0 to 100 Kg and usable stroke of 22 mm - Benchtop press with two buttons security system - Pneumatic actuation of the rack through a souble effect piston - Maximum light 175mm - Ideal ...

Opening: 67 mm
Force: 2.5 kN

Adjustable power from 0 to 100 Kg and usable stroke of 67 mm - Benchtop press with two buttons security system - Pneumatic actuation of the rack through a souble effect piston - Maximum light 318 mm - Ideal ...

Opening: 80 mm
Force: 4.4 kN

Adjustable power from 0 to 450 Kg and usable stroke of 80 mm - Benchtop press with two buttons security system - Pneumatic actuation of the rack through a souble effect piston - Maximum light 380 mm - Ideal for ...

Opening: 100, 200, 300, 400 mm
Force: 40, 63, 100 kN

P1.102 ECO press-in devices in portal design P1.102 ECO press-in devices in portal design hydraulic drive max. press-in force 40 to 100 kN with rapid/creep/rapid speed control by ...

Opening: 200, 300, 400, 100 mm
Force: 40, 63, 100 kN

P1.202 ECO press-in devices in C-frame design P1.202 ECO press-in devices in C-frame design hydraulic drive max. press-in force 40 to 100 kN with rapid/creep/rapid speed control ...

Opening: 54 mm - 200 mm
Force: 2 kN

EMG Presses' 2 HR Manual Presses are engineered with rack and pinion designs, delivering continuous linear power rates over the whole travel range, according to the applied loads. The units showcase clear height designs, modifiable strokes, ...

Opening: 35 mm - 270 mm
Force: 3.9 kN

The 3 HR from EMG Presses is a kind of rack and pinion capable of providing linear power with 200 Kg over the whole travel, based on the applied load. The tool has a clear height, and is equipped with an adjustable stroke. In addition, ...

Opening: 46 mm - 280 mm
Force: 5.9 kN

This manually-controlled rack-and-pinion bench press is capable of providing a constant linear power over the entire performance. It has a clear height and produces an adjustable stroke feature. The product is specifically ...

The AERO incorporates everything needed to make a perfect splice in a conveyor belt without the need for an air pump, couplings, hoses, a water tank or control box. It takes just 8-12 minutes to splice a conveyor belt with the AERO ...

Force: 7.5, 30, 15 kN

To meet with more particular production processes, a range of pneumatic presses are specially suitable for crimping, riveting, bending, marking, blanking, punching and raising, with maximum precision and safety. Several types of controls ...

Force: 0 N - 1,500 N

... type S50.x and 40mm for type S100, with an adjustment to 1/100th. • Exactly reproduces the movement of a manual watchmaker press : down the spindle without force on the workpiece, then applying pressure.

Opening: 100 mm
Force: 3 kN

Servopress 3kN ============ Technical characteristics Nominal pressure pressure : 3kN Course: 100mm Holding time with nominal force: 4s Rated speed: 200 mm/s Slow speed: 0.01 mm/s Accélération max : 5000 mm/s² Poids:18kg Maximum tooling ...

Opening: 0 mm - 152 mm
Force: 7.5, 3.5 kN

Compact servopress with Tolomatic actuator. 3.5kN holding force pushing force of 7.5kN for 4s. This servo is controlled by the dedicated software MecaMotion. The solution offers the possibility of data transfer with OPC UA industry standard ...

Opening: 150 mm
Force: 294.2 kN

... ° C •*** Maximum press area diameter: 250 mm •*** Stroke distance: 150 mm •*** Adjustable pressing force of 0-30 tons, •± 30 kg force accuracy, •Temperature accuracy ± 2 ° C, •Ability to read continuously applied ...

Force: 49 kN - 490.3 kN

... range of manual presses and accessories to suit your specific applications. The manually operated oil-hydraulic laboratory press makes pressing pellets of various materials faster with a high reproducibility. Features Hardened ...

Force: 49 kN - 490.3 kN

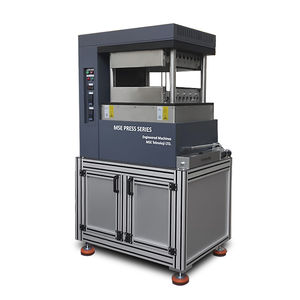

Manual hot press is the most effective solution at small production runs. Our standard MSE_LP_M_ series manual presses are available at 5 to 50 tons capacities. The manually operated oil-hydraulic laboratory press ...

Opening: 400 mm
Force: 200 kN - 2,000 kN

Unique Features •Made in Denmark with high quality European components •Stenhøj designed double-acting cylinder •Variable pressing speed control •Accessibility for long workpieces •The frame is conservatively designed for ...

Force: 0 kN - 2,000 kN

High Quality - High Reliability Presses Features •0-2000 Ton Pressing Force •Modular Design •1-6 Axes •Guided column og flat guided presses •Fully programmable on operator panel •Stenhøj designed cylinder with extra ...

Force: 0 kN - 300 kN

High Quality - High Reliability Presses Features •0-300 Ton Pressing Force •Modular Design •2 and 4 Guided columns •Fully programmable on operator panel •Stenhøj designed cylinder with extra long guides •Flexible ...
