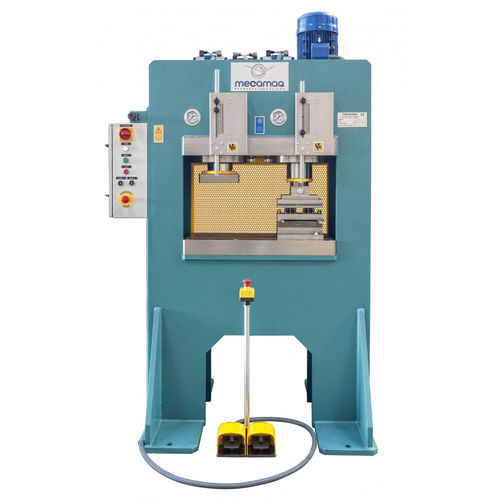

hydraulic press / riveting / punching / double-action
PHE-150+100

{{requestButtons}}

Characteristics

  • Operation:

    hydraulic

  • Function:

    riveting, punching

  • Other characteristics:

    double-action

  • Opening:

    300 mm

  • Force:

    1,494.6 kN

Description

Machine with two independent cylinders for make punching and clinch.
First workstation with one double effect cylinder 150 Tons for punching.
Second workstation with one double effect cylinder 100 Tons for clinch.
Lower plate 800 x 380 mm with T grooves M16.
Stroke of the cylinders 150 mm.
Maximum opening between cylinder and lower plate: 300 mm.
Regulation of the stroke of the cylinders by means of ends of stroke. One for each workstation.
Pressure regulation by means of electric regulator for the clinch station.
Activation by means of electric pedals.
Engine power: 7,5 Hp.
