hydraulic press / forming
PRISMA 800

Add to MyDirectIndustry favorites

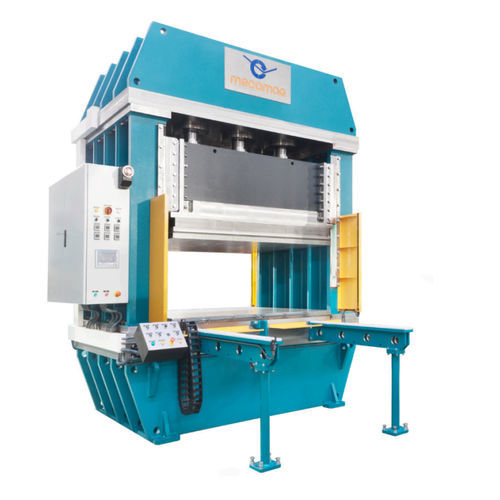

hydraulic press / forming hydraulic press / forming - PRISMA 800
  • Hydraulic press / forming
{{requestButtons}}

Characteristics

  • Operation:

    hydraulic

  • Function:

    forming

  • Opening:

    1,000 mm

  • Force:

    7,971.2 kN

Description

Power (tons).800
Stroke (mm)800
Lower and upper plate (mm)2000x1500
Maximum oppening (mm)1000
Engine power (HP)30
Approximation speed (mm/sec)75
Work speed (mm/sec)1 a 3
Max. pressure (bars)270
Machine dimensions (m)3,30x3,30x4,70
Weight (Kg.)46000
