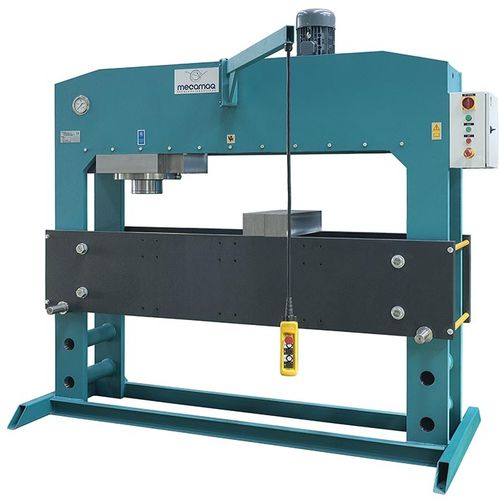

Motorized press CD-200E
formingwith floating headstockvertical

motorized press
motorized press
Add to favorites
Compare this product


Characteristics

Operation
motorized
Function
forming
Structure
with floating headstock
Other characteristics
vertical
Force

1,961.3 kN

Opening

2,100 mm
(83 in)

Description

Floating headstock motorized. Stroke floating headstock 1450mm. Speed floating headstock 600mm/min. Features Power (tons).200 Stroke (mm)250 Front opening useable (mm)2100 Side opening useable (mm)400 Vertical opening useable (mm)240 / 740 Engine power (HP)5,5 Speed mm/min.145 Max. pressure (bars)320 Machine dimensions (m)2,80x1,30x2,65 Weight (Kg.)4000
