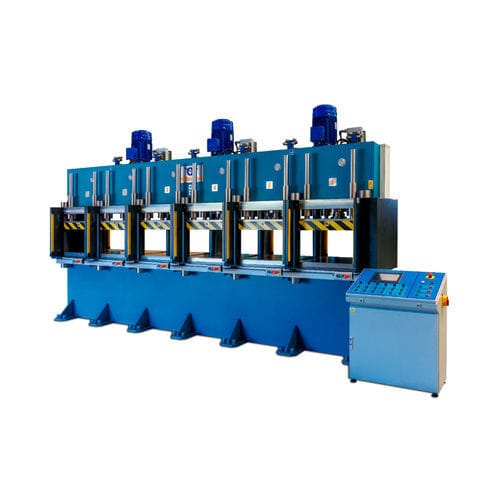

Hydraulic press PHE100x6 5558forming
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- forming
- Force
100 tf
- Opening
350 mm
(14 in)- Stroke
350 mm
(13.78 in)- Table width
700 mm
(28 in)- Table length
700 mm
(28 in)- Max. pressure
310 bar
(4,496 psi)- Working speed
9.8 mm/s
- Weight
19,500 kg
(42,990 lb)- Overall width
5,400 mm
(213 in)- Overall height
2,900 mm
(114 in)
Description
Power (tons) - 100x6
No. columns - 4x6
Columns Ø (mm) - 60
Lower and upper plate (mm) - 700x700
Engine power (HP) - 20
Depth (mm.) - 1400
