Electric press DE100 5840
formingdoorfixed

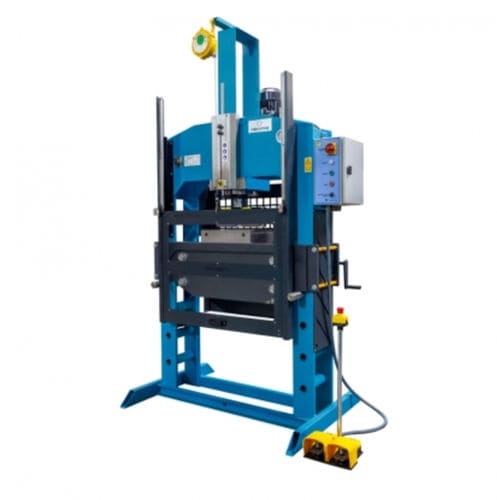

Electric press - DE100 5840 - Mécamaq - forming / door / fixed
Electric press - DE100 5840 - Mécamaq - forming / door / fixed
Add to favorites
Compare this product
Go to the Mécamaq website for more information

Characteristics

Operation
electric
Function
forming
Applications
door
Other characteristics
fixed
Force

100 tf

Opening

240 mm
(9 in)

Stroke

250 mm
(9.843 in)

Table width

830 mm
(33 in)

Table length

230 mm
(9 in)

Max. pressure

380 bar
(5,511 psi)

Working speed

4 mm/s

Weight

1,000 kg
(2,205 lb)

Overall width

1,560 mm
(61 in)

Overall height

2,657 mm
(105 in)

Description

Door balancer. Movable front guard with electric switch door open. Fixed rear and side guards. Selector guards OFF - ON with key. Features Engine power (HP) - 4 Approximation speed (mm/s) - 10 Depth (mm.) - 1000
