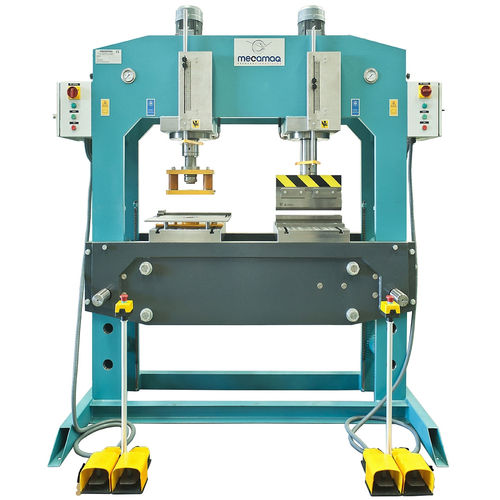

Hydraulic press DE-160 3605punchingbendingshop
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- bending, punching
- Other characteristics
- shop
- Force
200 tf
- Opening
1,000 mm
(39 in)- Stroke
800 mm
(31.496 in)- Table width
1,300 mm
(51 in)- Table length
1,500 mm
(59 in)- Max. pressure
270 bar
(3,916 psi)- Working speed
Max.: 25 mm/s
Min.: 5 mm/s
- Weight
18,000 kg
(39,683 lb)- Overall length
2,300 mm
(91 in)- Overall width
1,760 mm
(69 in)- Overall height
4,100 mm
(161 in)
Description
2 work places equipped with useful of punch and useful of folding.
The maximum power of every working place is of 80 Tm and comes equipped with regulation of tour, pressure and independent operation.
