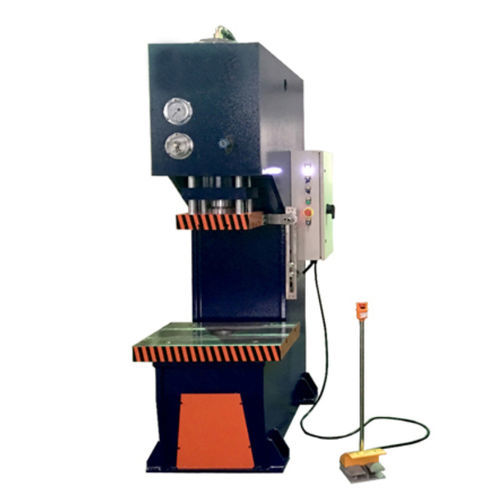

Hydraulic press Y41

manualassemblytest

Y41 series single calibration mounting hydraulic press is a multi-functional medium and small type of hydraulic press. It is suitable for shaft parts and other steel material or for press-assembly sleeve or bush parts. It also can be used to press powder or plastic parts with rough press requirements . 1. Totally European design, Welded steel frame rigid to deflection moment and high tensile with ST44 A1 materia . 2. Fully enclosed drive, easily accessible for maintenance, eliminates, exposed over hanging parts,slide and bolster tables with T-slots . 3. Uses a variable flow piston pump - offers high pressure resistance, high velocity, durability and low noise . 4. Hydraulic pipe system uses integrated circuits - manifold block fits inside the press to reduce piping and oil leaks, easy to maintain, simple and safe. Hydraulic system is from Bosch,Germany . 5. Guiding device: adopts four cylindrical location guiding to make sure of the steady precision, and it's easy to test and maintain . 6. Presses operated with automatic one cycle design; two hand push button design for simple and safe operation. Presses which could realize three-operation mode: adjustment, manual and semi-automatic . 7. PLC press control is flexible and safe. Adjustable proximity switches allows stroke adjustments in seconds . 8. The Machine is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards; conforms to OSHA .
