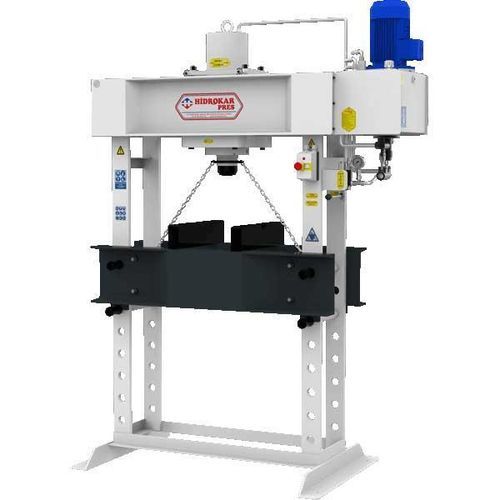

Hydraulic press HAP-S

for disassemblycompressionstraightening

General description
This hydraulic workshop press is designed for industrial workshop operations such as pressing, bending, riveting, bearing extraction and straightening. Units are manufactured to order and can be adapted in dimensions, capacities and options to customer requirements. Standard production covers press forces from 10 to 400 TON and table working areas from approximately 500 mm to 2050 mm.

Main features

• Welded steel frame construction
• Hydraulic power unit designed for low maintenance
• Emergency stop button
• Control via lever
• Pressure gauge
• Manual travelling cylinder (from 30 TON and above)
• Lower table height adjustment mechanism
• Hand pump
• Hydraulic safety system
• Electrical safety system

Optional features

• Push-button control
• Manual ram stroke adjustment
• Geared travelling cylinder
• Reducer-driven travelling cylinder
• V-block set
• Punch set
• Lower table wear/working plate
• Light curtain
• Safety cage
• Safety cover

Technical table / specifications

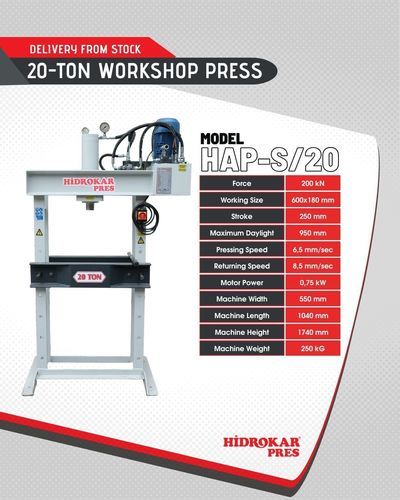

• Press force (TON): 10 | 20 | 30 | 60 | 80 | 100 | 100 | 120 | 150 | 150 | 200 | 200 | 250 | 300 | 400
• Typical ranges: between columns ~550–2050 mm, daylight capacity ~950 mm (varies by model)
• Cylinder stroke: typically 250–400 mm
• Motor power: ~0.75 kW → 7.5 kW (depends on model)
• Pump flow: ~2.3 l/min → 28 l/min (depends on model)
• Down speed: approx. 4.5 – 9.9 m/s (model dependent)
• Return speed: up to ~16.5 m/s (model dependent)
• Dimensions and weights vary by model (weight examples: from ~160 kg to several tonnes)
• Model / Series: HAP-S
• Brand: Hidrokar Pres
