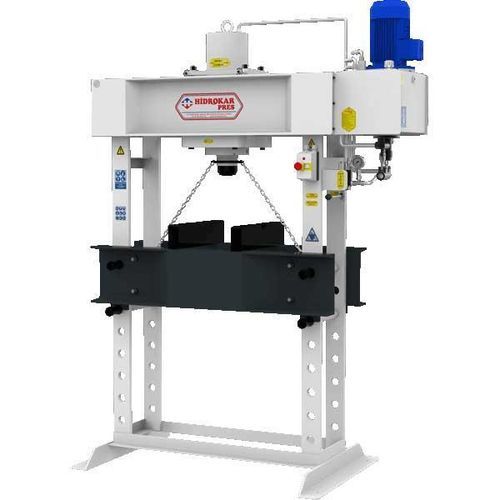

Hydraulic press HAP-Smotorizedpunchingstraightening
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic, motorized
- Function
- for production, stamping, bending, straightening, punching, compression, die-cutting, riveting, swaging, sealing, for disassembly
- Applications
- for sheet metal, for industrial applications, for steel, for profiles, for gaskets, tube, for automotive applications, flange, sleeve, for thin metal strips, for hydraulic applications, for press-fit pin connector applications
- Structure
- with movable piston, frame, H-frame
- Control
- hand-operated
- Other characteristics
- vertical, shop, hand-held

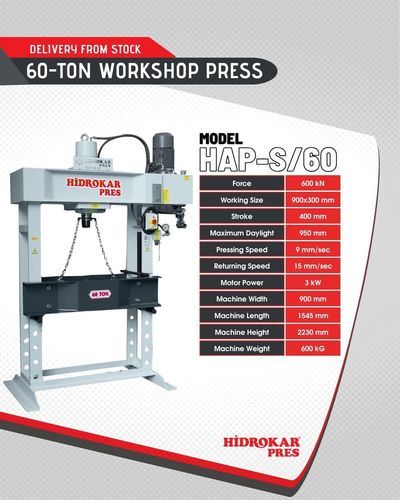

- Force
Min.: 60 tf
- Opening
Min.: 950 mm
(37 in)- Stroke
Min.: 400 mm
(15.748 in)- Table width
Max.: 2,050 mm
(81 in)Min.: 500 mm
(20 in)- Max. pressure
Min.: 250 bar
(3,626 psi)- Working speed
Min.: 9 mm/s
- Return speed
Min.: 15 mm/s
- Weight
Min.: 600 kg
(1,323 lb)- Overall length
Min.: 1,545 mm
(61 in)- Overall height
Min.: 2,230 mm
(88 in)
Description
Product description

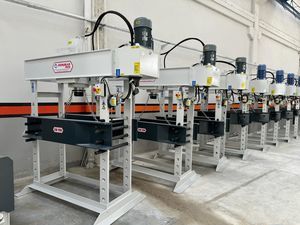

Commonly found in workshops, these hydraulic presses are used for pressing, bending, punching, bearing extraction and straightening operations. Production is customer-oriented and units can be manufactured to specific sizes and configurations on request. Standard range: press force 10-400 ton and table usable width 500-2050 mm.
Main features
Optional features
Technical data
Commonly found in workshops, these hydraulic presses are used for pressing, bending, punching, bearing extraction and straightening operations. Production is customer-oriented and units can be manufactured to specific sizes and configurations on request. Standard range: press force 10-400 ton and table usable width 500-2050 mm.
Main features
- Steel frame construction
- Low-maintenance hydraulic unit
- Emergency stop button
- Control lever operation
- Pressure gauge
- Manual travelling cylinder (from 30 ton models)
- Lower table height adjustment mechanism
- Hand pump
- Hydraulic safety system
- Electrical safety system
Optional features
- Push-button control
- Manual ram stroke adjustment
- Gear-driven travelling cylinder
- Travelling cylinder with gearbox
- V-block set
- Punch set
- Lower table work plate
- Light curtain
- Safety cage
- Safety cover
Technical data
- Model / Series: HAP-S
- Press force (standard range): 10-400 ton
- Table usable width: 500-2050 mm (standard values)
- Typical cylinder stroke: 250-400 mm
- Motor power range: 0.75-7.5 kW (model dependent)
- Pump flow: typically 2.3-28 l/min (model dependent)
- Down / return speeds: down approx. 4.5-9.9 mm/s; return approx. 8.2-16.5 mm/s (model dependent)
- Approx. weight range: 160-4750 kg (model dependent)
- Available press forces (examples): 10, 20, 30, 60, 80, 100, 120, 150, 200, 250, 300, 400 ton
- Customization: possible on request (sizes, specifications, configurations)
