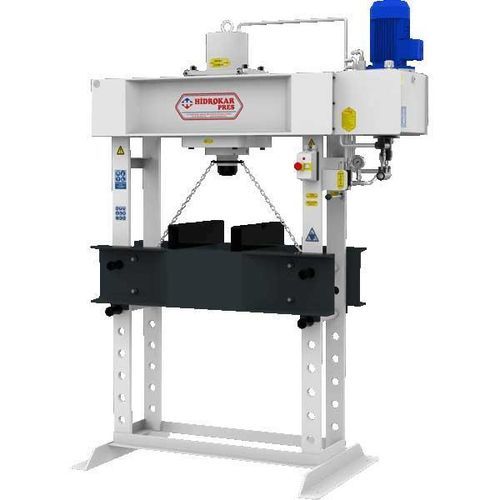

Manually-controlled press HAP-S

hydrauliccompressionfor disassembly

General description
The HAP-S hydraulic workshop press is a versatile industrial press for pressing, bending, punching, bearing extraction, straightening and similar workshop operations. Standard production covers press forces from 10 to 400 ton and table areas from 500 to 2050 mm. Units can be manufactured to customer specifications for different capacities, dimensions and special configurations.

Main features

• Robust steel construction
• Low-maintenance hydraulic power unit
• Emergency stop
• Lever control
• Pressure gauge
• Manually travelling ram (from 30 ton models)
• Lower table height adjustment mechanism
• Hand pump
• Hydraulic safety system
• Electrical safety system

Optional features

• Push-button control
• Manual ram stroke setting
• Geared travelling ram
• Reducer-driven travelling ram
• V-block set
• Punch set
• Lower table working plate
• Light curtain
• Safety cage
• Safety cover

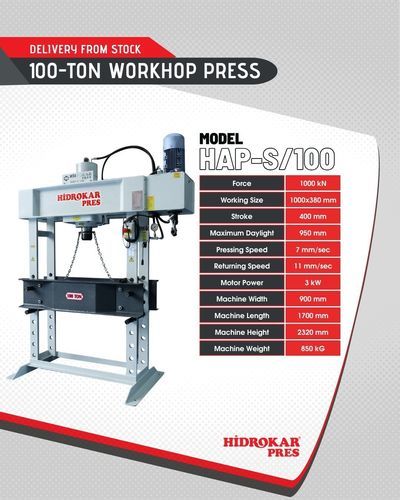

Technical specifications

• Model/Series: HAP-S
• Standard press force range: 10–400 ton
• Standard table use area: 500–2050 mm
• Cylinder stroke: 250 mm or 400 mm (depending on model)
• Motor power range: 0.75–7.5 kW
• Pump flow: 2.3–28 l/min (depending on model)
• Down / return speeds: model-dependent; typical down speed up to ~9.9 m/s, return speed up to ~16.5 m/s
• Dimensions and weights vary by model (table widths, lengths, heights and weights follow model table)
• Standard safety and control elements: emergency stop, pressure gauge, hydraulic and electrical safety systems
