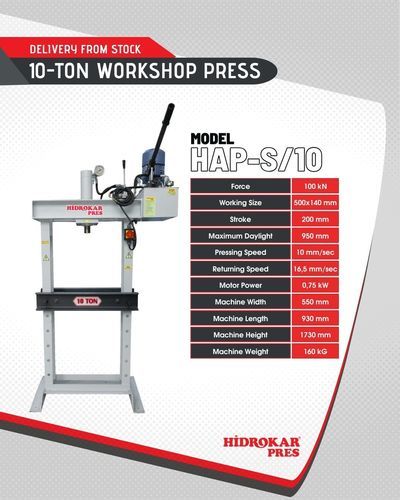

Hydraulic press HAP-Scompressionfor disassemblyriveting
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- compression, for disassembly, riveting, straightening, bending
- Structure
- frame, with movable piston
- Control
- hand-operated
- Other characteristics
- shop, with lever control
- Force
Min.: 10 tf
Max.: 400 tf
- Opening
Min.: 950 mm
(37 in)Max.: 950 mm
(37 in)- Stroke
Min.: 250 mm
(9.843 in)Max.: 400 mm
(15.748 in)- Table width
Min.: 500 mm
(20 in)Max.: 2,050 mm
(81 in)- Table length
Min.: 930 mm
(37 in)Max.: 3,000 mm
(118 in)- Hydraulic pump power
Min.: 1 kW
(1.4 hp)Max.: 7.5 kW
(10.2 hp)- Overall length
Min.: 93 cm
(37 in)Max.: 300 cm
(118 in)- Overall width
Min.: 55 cm
(22 in)Max.: 160 cm
(63 in)- Overall height
Min.: 173 cm
(68 in)Max.: 277 cm
(109 in)
Description
Overview
This hydraulic workshop press is designed for general workshop tasks such as pressing, bending, riveting, bearing removal and straightening. Units are manufactured on request with configurable features, sizes and layouts. Standard production covers press forces from 10 to 400 t and table widths from 500 to 2050 mm.
Main features
Optional features
Technical table (rows separated)
Press Force | t | 10 | 20 | 30 | 60 | 80 | 100 | 100 | 120 | 150 | 150 | 200 | 200 | 250 | 300 | 400
Between Columns (D) | mm | | | 550 | 550 | 700 | 900 | 950 | 1000 | 1550 | 1050 | 1250 | 2050 | 1500 | 2050 | 1500 | 1500 | 1500
Daylight Capacity (F) | mm | | | 950 | 950 | 1100 | 950 | 950 | 950 | 950 | 950 | 950 | 950 | 950 | 950 | 950 | 950 | 950
In Width (E) | mm | | | 140 | 180 | 250 | 300 | 300 | 380 | 500 | 350 | 440 | 550 | 400 | 600 | 450 | 550 | 550
Table Width (G) | mm | | | 280 | 340 | 442 | 520 | 552 | 630 | 776 | 605 | 716 | 780 | 695 | 895 | 695 | 793 | 865
Cylinder Stroke | mm | | | 250 | 250 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400
Motor Power | kW | | | 0.75 | 0.75 | 1.5 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 7.5
Pump Flow | L/min | | | 2.3 | 2.9 | 6.1 | 9 | 12 | 12 | 12 | 16 | 16 | 16 | 22 | 22 | 28 | 28 | 28
Down Speed | m/s | | | 9.9 | 6.3 | 9.8 | 9 | 7.8 | 7 | 7 | 7.6 | 6 | 6 | 5.9 | 5.9 | 6.6 | 5.4 | 4.5
Return Speed | m/s | | | 16.5 | 8.4 | 15.2 | 15 | 13.1 | 11 | 11 | 10.8 | 9 | 9 | 9 | 9 | 9 | 11.4 | 8.2 | 8.3
Width (C) | mm | | | 550 | 550 | 650 | 900 | 900 | 900 | 1000 | 1000 | 1000 | 1200 | 1100 | 1200 | 1100 | 1250 | 1600
Length (B) | mm | | | 930 | 1040 | 1300 | 1545 | 1700 | 1700 | 2250 | 1860 | 2000 | 2800 | 2405 | 3000 | 2500 | 2600 | 2900
Height (A) | mm | | | 1730 | 1740 | 2070 | 2230 | 2300 | 2320 | 2320 | 2285 | 2360 | 2360 | 2540 | 2540 | 2500 | 2500 | 2770
Weight | kg | | | 160 | 250 | 360 | 560 | 800 | 810 | 1150 | 1150 | 1200 | 1700 | 2050 | 2650 | 2800 | 3300 | 4750
Technical specifications
This hydraulic workshop press is designed for general workshop tasks such as pressing, bending, riveting, bearing removal and straightening. Units are manufactured on request with configurable features, sizes and layouts. Standard production covers press forces from 10 to 400 t and table widths from 500 to 2050 mm.
Main features
- Steel frame construction
- Low-maintenance hydraulic unit
- Emergency stop button
- Control lever operation
- Pressure gauge
- Manual travelling cylinder (from 30 t)
- Lower table height adjustment mechanism
- Hand pump
- Hydraulic safety system
- Electrical safety system
Optional features
- Pushbutton control
- Manual ram stroke adjustment
- Geared travelling cylinder
- Reducer-driven travelling cylinder
- V-block set
- Punch set
- Lower table working plate
- Light curtain
- Safety cage
- Safety cover
Technical table (rows separated)
Press Force | t | 10 | 20 | 30 | 60 | 80 | 100 | 100 | 120 | 150 | 150 | 200 | 200 | 250 | 300 | 400
Between Columns (D) | mm | | | 550 | 550 | 700 | 900 | 950 | 1000 | 1550 | 1050 | 1250 | 2050 | 1500 | 2050 | 1500 | 1500 | 1500
Daylight Capacity (F) | mm | | | 950 | 950 | 1100 | 950 | 950 | 950 | 950 | 950 | 950 | 950 | 950 | 950 | 950 | 950 | 950
In Width (E) | mm | | | 140 | 180 | 250 | 300 | 300 | 380 | 500 | 350 | 440 | 550 | 400 | 600 | 450 | 550 | 550
Table Width (G) | mm | | | 280 | 340 | 442 | 520 | 552 | 630 | 776 | 605 | 716 | 780 | 695 | 895 | 695 | 793 | 865
Cylinder Stroke | mm | | | 250 | 250 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400
Motor Power | kW | | | 0.75 | 0.75 | 1.5 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 7.5
Pump Flow | L/min | | | 2.3 | 2.9 | 6.1 | 9 | 12 | 12 | 12 | 16 | 16 | 16 | 22 | 22 | 28 | 28 | 28
Down Speed | m/s | | | 9.9 | 6.3 | 9.8 | 9 | 7.8 | 7 | 7 | 7.6 | 6 | 6 | 5.9 | 5.9 | 6.6 | 5.4 | 4.5
Return Speed | m/s | | | 16.5 | 8.4 | 15.2 | 15 | 13.1 | 11 | 11 | 10.8 | 9 | 9 | 9 | 9 | 9 | 11.4 | 8.2 | 8.3
Width (C) | mm | | | 550 | 550 | 650 | 900 | 900 | 900 | 1000 | 1000 | 1000 | 1200 | 1100 | 1200 | 1100 | 1250 | 1600
Length (B) | mm | | | 930 | 1040 | 1300 | 1545 | 1700 | 1700 | 2250 | 1860 | 2000 | 2800 | 2405 | 3000 | 2500 | 2600 | 2900
Height (A) | mm | | | 1730 | 1740 | 2070 | 2230 | 2300 | 2320 | 2320 | 2285 | 2360 | 2360 | 2540 | 2540 | 2500 | 2500 | 2770
Weight | kg | | | 160 | 250 | 360 | 560 | 800 | 810 | 1150 | 1150 | 1200 | 1700 | 2050 | 2650 | 2800 | 3300 | 4750
Technical specifications
- Model / Series: HAP-S (produced in various tonnages)
- Press force range: 10–400 t
- Standard table area: 500–2050 mm
- Cylinder stroke: typically 250–400 mm (model dependent)
- Motor power: from 0.75 kW up to 7.5 kW (model dependent)
- Pump flow: 2.3 L/min to 28 L/min (model dependent)
- Down/return speeds: approximately 4.5–16.5 m/s depending on model
- Dimensions and weights: vary by tonnage, weight range approximately 160–4750 kg
